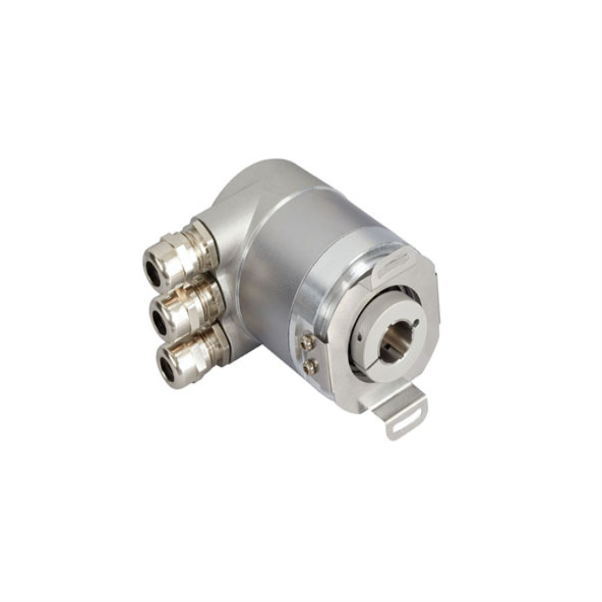

Multi Turn Absolute Optical Rotary Encoder Prosafe (Pronet IO) 15 mm
SKU: OCD-DPC1B-1213-B15S-H3P
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The OCD-DPC1B-1213-B15S-H3P Posital Fraba Multi Turn Absolute Optical Rotary Encoder Prosafe (Pronet IO) 15 mm is a high-precision instrument made for precise position feedback in a range of industrial applications.
For accurate and dependable multi-turn position readings, this encoder makes use of cutting-edge optical technology.
It has a sturdy construction that ensures endurance and resistance to harsh environmental conditions thanks to its solid stainless-steel shaft and aluminium housing.
Because the encoder is compatible with the Profibus DP interface, it may be integrated into intricate automation systems.
For applications needing accurate and reliable position control, this encoder's high resolution and numerous programming functions make it perfect.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: Profibus DP (DPV0, DPV1, DPV2).
Transmission Rate: ≤12 Mbaud.
Supply Voltage: 10 – 30 VDC.
Current Consumption: ≤ 115 mA @ 10 V DC, ≤ 50 mA @ 30 V DC.
Power Consumption: ≤ 1.5 W.
Start-Up Time: < 1 s.
Protection Class: IP66/IP67 (shaft and housing).
Operating Temperature: -40 °C to +85 °C.
Storage Temperature: -40 °C to +85 °C.
Humidity: 98% RH, no condensation.
Resolution: 13-bit single turn, 12-bit multiturn.
Accuracy: ±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit).
Shaft Diameter: 15 mm.
Shaft Material: Stainless Steel V2A (1.4305, 303).
Max. Shaft Load: Axial 40 N, Radial 110 N.
Mechanical Lifetime: Up to 430 x 10^8 revolutions.
Shock Resistance: ≤ 100 g (half sine 6 ms).
Vibration Resistance: ≤ 20 g (20 Hz – 2000 Hz).
Housing Material: Aluminium with wet coating and cathodic corrosion protection.
Connection Type: 3 x Cable Gland, radial orientation.
Weight: 480 g.
