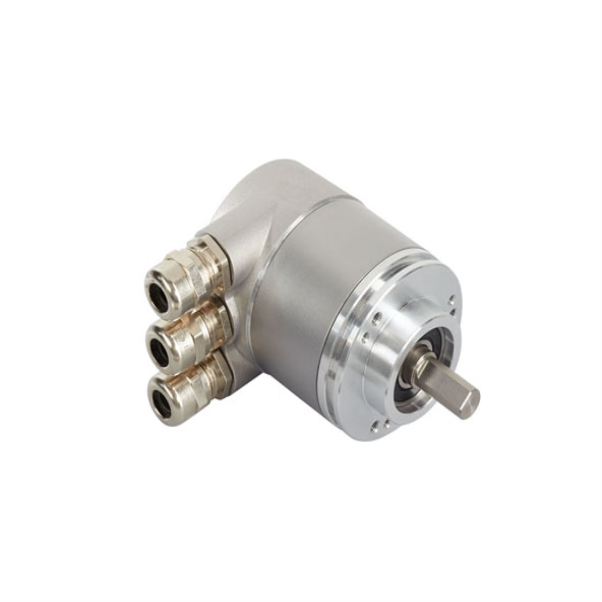

Multi Turn Absolute Optical Rotary Encoder Prosafe (Pronet IO) 10 mm
SKU: OCD-DPC1B-1213-C10S-H3P
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The OCD-DPC1B-1213-C10S-H3P Posital Fraba Multi Turn Absolute Optical Rotary Encoder Prosafe (Pronet IO) 10 mm is an advanced device designed for accurate position feedback in industrial environments.
This encoder provides precise multi-turn position readings by utilizing cutting-edge optical technology. Its sturdy design, which includes an aluminium housing and a stainless-steel shaft, guarantees longevity and resistance to harsh environmental conditions.
The encoder is perfect for integrating into intricate automation systems because it supports the Profibus DP interface.
This encoder is ideal for applications requiring accurate and dependable position control because of its high resolution and numerous programming features.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: Profibus DP (DPV0, DPV1, DPV2).
Transmission Rate: ≤12 Mbaud.
Supply Voltage: 10 – 30 VDC.
Current Consumption: ≤ 115 mA @ 10 V DC, ≤ 50 mA @ 30 V DC.
Power Consumption: ≤ 1.5 W.
Start-Up Time: < 1 s.
Protection Class: IP66/IP67 (shaft and housing).
Operating Temperature: -40 °C to +85 °C.
Storage Temperature: -40 °C to +85 °C.
Humidity: 98% RH, no condensation.
Resolution: 13-bit single turn, 12-bit multiturn.
Accuracy: ±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit).
Shaft Diameter: 10 mm.
Shaft Material: Stainless Steel V2A (1.4305, 303).
Max. Shaft Load: Axial 40 N, Radial 110 N.
Mechanical Lifetime: Up to 430 x 10^8 revolutions.
Shock Resistance: ≤ 100 g (half sine 6 ms).
Vibration Resistance: ≤ 20 g (20 Hz – 2000 Hz).
Housing Material: Aluminium with wet coating and cathodic corrosion protection.
Connection Type: 3 x Cable Gland, radial orientation.
Weight: 480 g.
