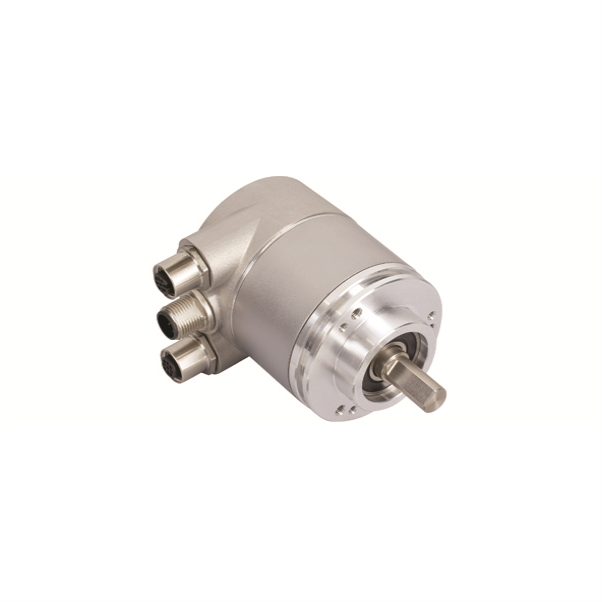

Absolute Optical Rotary Encoder Ethernet Modbus TCP IP and Modbus - TCP Single Turn 10mm
SKU: OCD-EM00B-0013-C10S-PRM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For precise position feedback in a variety of industrial applications, the Posital Fraba Absolute Optical Rotary Encoder with Ethernet Modbus TCP/IP and Modbus-TCP interface, Single Turn 10 mm, is a high-precision device.
This encoder provides accurate and dependable single-turn position readings by utilizing cutting-edge optical technology. Long-term performance even in challenging conditions is guaranteed by its sturdy design, which includes a stainless-steel shaft and a long-lasting housing.
The encoder may be integrated into intricate automation systems because it supports Ethernet Modbus TCP/IP and Modbus-TCP interfaces.
This encoder is perfect for applications needing accurate and reliable position control because of its high resolution and numerous programming functions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: Ethernet Modbus TCP/IP and Modbus – TCP.
Supply Voltage: 10 – 30 VDC.
Power Consumption: Max. 4 W.
Start-Up Time: < 1 s.
Protection Class: IP65 (shaft and housing).
Operating Temperature: -40 °C to +85 °C.
Storage Temperature: -40 °C to +85 °C.
Humidity: 98% RH, no condensation.
Resolution: 16-bit single turn.
Accuracy: ±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit).
Shaft Diameter: 10 mm.
Shaft Material: Stainless Steel V2A (1.4305, 303).
Max. Shaft Load: Axial 40 N, Radial 110 N.
Mechanical Lifetime: Up to 430 x 10^8 revolutions.
Shock Resistance: ≤ 100 g (half sine 6 ms).
Vibration Resistance: ≤ 10 g (10 Hz – 1000 Hz).
Housing Material: aluminium with wet coating and cathodic corrosion protection.
Connection Type: Radial Connector M12, Male, 8 pin, a coded.
Weight: 500 g.
