      SSI, Absolute Optical Rotary Encoder 12-Bit 4096 Steps per Resolution

      SKU: OCD-S101G-0012-B15S-PRL

      Out of stock

      Availability: Out of Stock

      Short Description
      Pricing available on request Description: For precise position measurement in industrial settings, the POSITAL FRABA Absolute Optical Rotary Encoder SSI (model OCD-S101G-0012-B15S-PRL) is a high-precision instrument. This encoder is perfect for a variety of automation and control systems because it uses optical technology to give accurate and dependable single-turn position feedback.

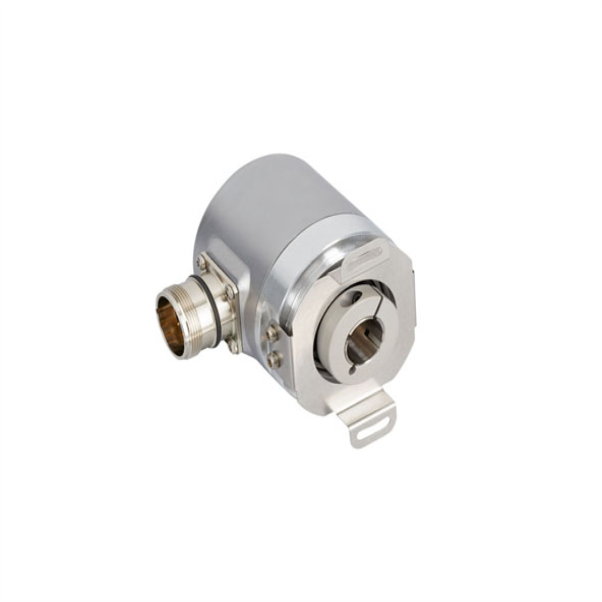

      OCD-S101G-0012-B15S-PRL
      Alternative image 1
      Specifications: Interface: SSI (Synchronous Serial Interface). Resolution: Single turn, 12-bit (4096 steps per revolution). Output Driver: RS422. Supply Voltage: 4.5 – 30 VDC. Power Consumption: ≤ 1.5 W. Start-Up Time: < 1 s. Clock Frequency: 100 kHz – 2 MHz. Reverse Polarity Protection: Yes. Short Circuit Protection: Yes. EMC Compliance: Emitted Interference (DIN EN 61000-6-4), Noise Immunity (DIN EN 61000-6-2). MTTF: 16.2 years @ 40°C. Accuracy (INL): ±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit). Code: Gray. Protection Class (Shaft): IP65. Protection Class (Housing): IP66/IP67. Operating Temperature: -40°C to +85°C. Humidity: 98% RH, no condensation. Housing Material: Steel. Housing Coating: Wet coating (RAL 9006 White Aluminium) + Cathodic corrosion protection (>720 h salt spray resistance). Flange Type: Clamp, ø 58 mm. Flange Material: Aluminium. Shaft Type: Solid, Single Flat, Length = 20 mm. Shaft Diameter: ø 10 mm. Shaft Material: Stainless Steel V2A (1.4305, 303). Max. Shaft Load: Axial 40 N, Radial 110 N. Minimum Mechanical Lifetime: 430 (20 N / 40 N), 150 (40 N / 60 N), 100 (40 N / 80 N), 55 (40 N / 110 N) (10^8 revolutions with Fa/Fr). Rotor Inertia: ≤ 30 gcm². Friction Torque: ≤ 3 Ncm @ 20°C. Max. Permissible Mechanical Speed: ≤ 12000 1/min. Shock Resistance: ≤ 100 g (half sine 6 ms, EN 60068-2-27). Permanent Shock Resistance: ≤ 10 g (half sine 16 ms, EN 60068-2-29). Vibration Resistance: ≤ 10 g (10 Hz – 1000 Hz, EN 60068-2-6). Length: 52.7 mm. Weight: 285 g. Electrical Connection: Radial Connector M23, Male, 12 pin, CCW / left. Certification: CE + cULus.
