SSI, Multi Turn Absolute Optical Rotary Encoder, RS422, 4.5 – 30 VDC
SKU: OCD-S101G-1213-B15S-PRL
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

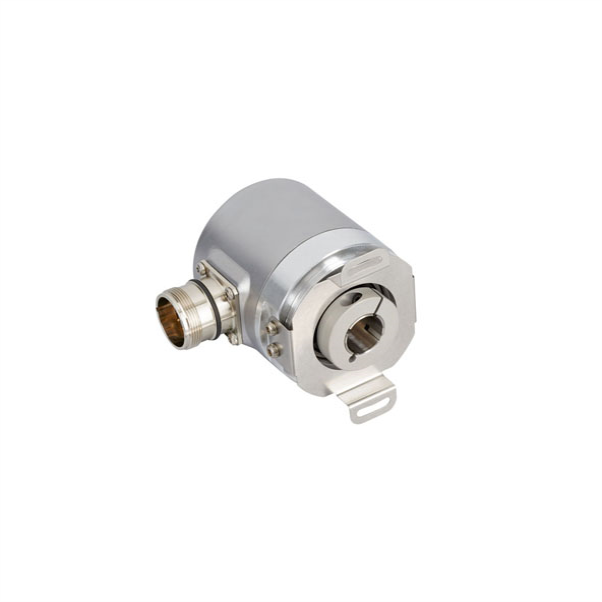

The OCD-S101G-1213-B15S-PRL Posital Fraba Multi Turn Absolute Optical Rotary Encoder with SSI interface is a high-precision instrument made for precise position feedback in a range of industrial applications.
This encoder provides accurate and dependable multi-turn position readings by utilizing cutting-edge optical technology.
Long-term performance even in challenging conditions is guaranteed by its sturdy design, which includes a stainless-steel shaft and a long-lasting housing.
The encoder may be integrated into intricate automation systems since it supports the SSI interface.
This encoder is perfect for applications needing accurate and reliable position control because of its high resolution and numerous programming functions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: SSI with Preset Manual Functions.
Output Driver: RS422.
Supply Voltage: 4.5 – 30 VDC.
Power Consumption: ≤ 1.5 W.
Start-Up Time: < 1 s.
Clock Input: RS 422, via Optocoupler.
Clock Frequency: 100 kHz – 2 MHz.
Reverse Polarity Protection: Yes.
Short Circuit Protection: Yes.
EMC: Emitted Interference DIN EN 61000-6-4, Noise Immunity DIN EN 61000-6-2.
MTTF: 16.2 years @ 40 °C.
Sensor Technology: Optical.
Resolution: 13-bit single turn, 12-bit multiturn.
Accuracy: ±0.0220° (14 – 16 bit), ±0.0439° (≤13 bit).
Code: Gray.
Protection Class: IP66/IP67 (shaft and housing).
Operating Temperature: -40 °C to +85 °C.
Humidity: 98% RH, no condensation.
Housing Material: Steel with wet coating (RAL 9006 White Aluminium) and cathodic corrosion protection.
Flange Type: Blind Hollow, ø 58 mm.
Flange Material: aluminium.
Shaft Type: Blind Hollow, Depth = 30 mm.
Shaft Diameter: ø 15 mm.
Shaft Material: Stainless Steel V2A (1.4305, 303).
Rotor Inertia: ≤ 30 gcm².
Friction Torque: ≤ 5 Ncm @ 20 °C.
Max. Permissible Mechanical Speed: ≤ 3000 1/min.
Shock Resistance: ≤ 100 g (half sine 6 ms).
Permanent Shock Resistance: ≤ 10 g (half sine 16 ms).
Vibration Resistance: ≤ 10 g (10 Hz – 1000 Hz).
Length: 71.2 mm.
Weight: 280 g.
Maximum Axial / Radial Misalignment: Static ± 0.3 mm /± 0.5 mm; Dynamic ± 0.1 mm /± 0.2 mm.
Electrical Connection: Radial Connector M23, Male, 12 pin, CCW / left.
Certification: CE + cULus.
