RFM69HW-868 MHz Transceiver 3.6 V
SKU: OTH-0011-H01
Sold by Select Automation
Final price R 325.76
R 283.27 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

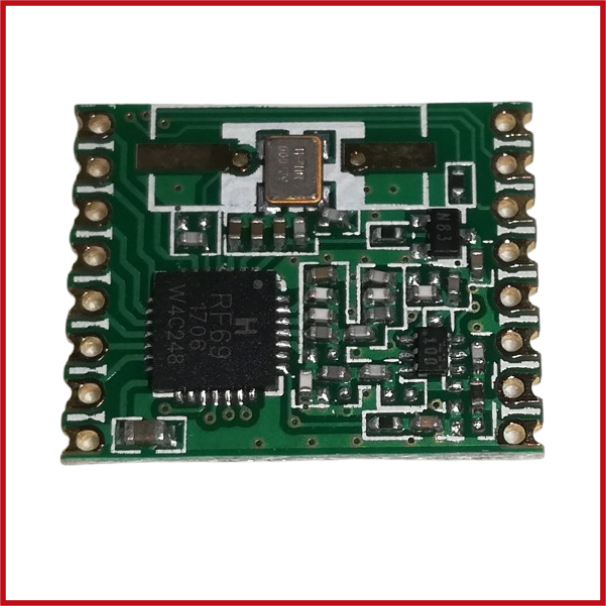

The RFM69HW-868 MHz Transceiver Module is a high-performance RF wireless transceiver designed for reliable long-range communication in the 868 MHz ISM band.
Built for low-power and high-efficiency wireless applications, the module supports both transmitting and receiving data with excellent sensitivity and robust signal performance.
Featuring the high-power RFM69HW chipset, this module delivers up to +20 dBm output power (100mW), making it ideal for applications requiring extended wireless range and stable communication.
It supports multiple modulation schemes and offers flexible configuration for a wide range of industrial, commercial, and IoT applications.
The module communicates via an SPI interface, allowing easy integration with microcontrollers, embedded systems, and wireless sensor networks.
Buy currently uses Select Automation shop pricing and checkout.
Spesifcations:
Product Type: RF Transceiver Module.
Model: RFM69HW-868.
Frequency Band: 868 MHz ISM.
Frequency Range: 862 – 890 MHz.
Supply Voltage: 1.8V – 3.6V DC.
Interface: SPI.
Maximum RF Output Power: +20 dBm (100mW).
Receiver Sensitivity: Up to -120 dBm.
Data Rate: 1.2 kbps – 300 kbps.
Modulation: FSK, GFSK, OOK, MSK, GMSK.
Encryption: AES-128.
FIFO Buffer: 66 Bytes.
Operating Temperature: -20°C to +70°C.
Dimensions: 19.7 × 16 × 1.9 mm.
