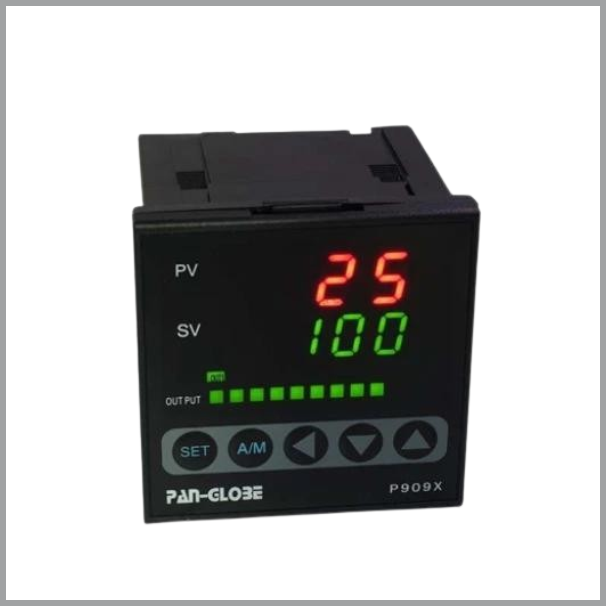

Pan-Globe P909-901-010-000 TempController Type K
SKU: P909-901-010-000
Sold by Select Automation
Final price R 4,801.25
R 4,175.00 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Pan-Globe P909-901-010-000 is a high-performance 96 × 96 mm digital PID temperature controller for precise temperature regulation in industrial and process control applications.
This type is designed to work with a Type K thermocouple and has a 3-phase SCR phase-angle trigger output, making it perfect for regulating high-power electric heaters, furnaces, ovens, and other temperature-controlled devices.
The controller uses advanced PID control with autotuning to deliver rapid response, reliable temperature regulation, and increased process efficiency.
The bright dual LED display shows both the process value (PV) and the set value (SV), allowing for simple monitoring and adjustment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Digital PID Temperature Controller.
Brand: Pan-Globe.
Model: P909-901-010-000.
Panel Size: 96 × 96 mm.
Panel Cut-out: 92 × 92 mm.
Control Method: PID with Autotuning.
Sensor Input: Type K Thermocouple.
Input Range: 0°C to 1300°C (Type K).
Display: Dual 4-digit LED (PV & SV).
Control Output: 3-Phase SCR Phase-Angle Trigger Output.
Control Modes: PID / ON-OFF.
Sampling Time: 500 ms.
Accuracy: ±0.2% FS.
Mounting: Panel Mount.
Operating Temperature: 0°C to +50°C.
Storage Temperature: -20°C to +70°C.
