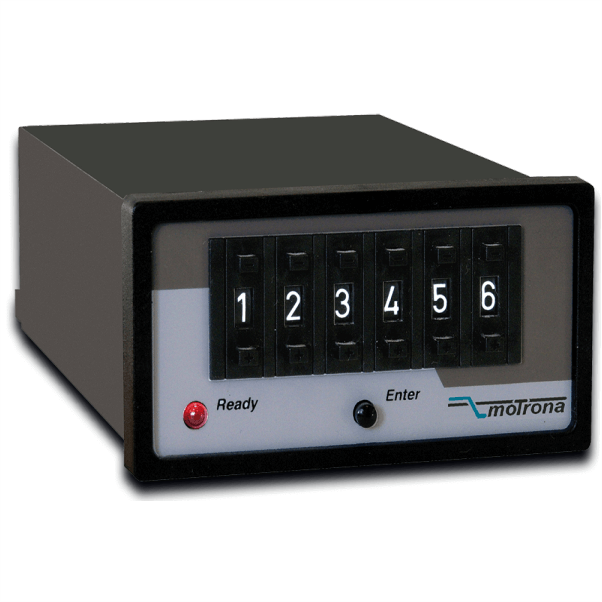

Simple Preset Unit for PROFIBUS
SKU: PB306
Out of stock
Availability: Out of Stock
Short Description
Pricing available on request
Description:
- Using a PROFIBUS interface, the PB306 is a straightforward device with a front-end 6-decade BCD pre-selection switch that allows for remote control of specific parameters (such as a drive's setpoint speed).
- The BCD value can be read out using the PROFIBUS by pushing the front ENTER key. All PROFIBUS-DP baud rates are supported, ranging from 9.6 kbit/s to 12 Mbps.
- A variation with five decades and the sign (+/-) is also an option.
- Mounting the small installation housing in a panel measuring 96 x 48 x 140 mm (3.78 x 1.89 x 5.51) is appropriate.
Specifications:
- Power supply 10 ... 30 VDC.
- Compact norm panel housing.
- Preset range: 6 digits or 5 digits with sign.
- DIL-switch for setup of the transmission parameters.
- By pressing the ENTER button, the actual BCD setting will be transmitted to the selected register of the target unit as PDO or SDO (CANBUS) or hold in the polling register for readout (PROFIBUS).
- Dimension H x B x T = 96 x 48 x 140 mm (3.78 x 1.89 x 5.51 ").
