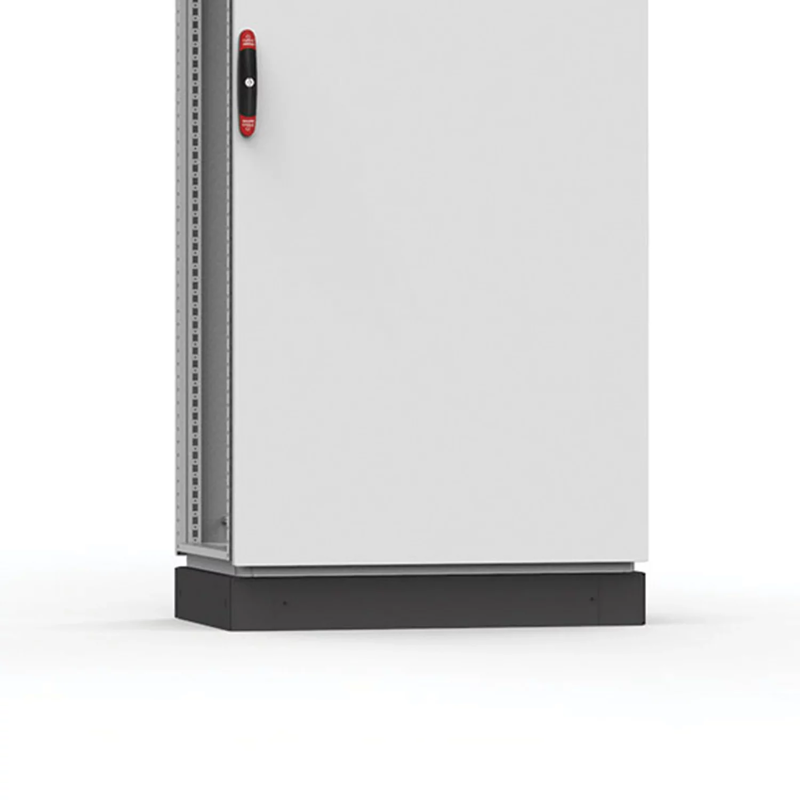

Front/Rear Plinths, PF, 100x1198x63mm, Umbra Gray, Zinc Plated, Mild Steel
SKU: PF1120
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The purpose of the Vent Hoffman Front/Rear Plinths, PF1120, is to give electrical enclosures more room and support.
These plinths are made of mild steel and have an Umbra Gray powder coating and zinc plating on them to guarantee their longevity and polished look.
According to the VDE 0113 standard, the plinths permit free wiring and provide additional room underneath the enclosure for simple cable installation.
Because the front and back panels are detachable, access and maintenance are made easier without requiring interior access.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: PF1120.
Material: Mild Steel.
Finish: Zinc Plated with Umbra Gray Powder Coating.
Colour: Umbra Gray.
Dimensions:
Height: 100 mm (3.94 in).
Width: 1198 mm (47.17 in).
Depth: 63 mm (2.48 in).
Thickness: 1.5 mm (16 gauge).
Protection Ratings: Complies with VDE 0113 standard.
Package Quantity: 1 plinth with mounting accessories.
Assembly: Tool-free assembly with snap-lines for side-to-side baying of combinable floor-standing enclosures.
Comments:
Must be mounted along with side panels PS.
For combined plinths, use plinth combining profiles PCP/PCPK for reinforcement.
Allows enclosures to be fixed to the floor without interior access.
These plinths are ideal for ensuring the stability and proper alignment of your electrical enclosures while providing easy access for cable management.
