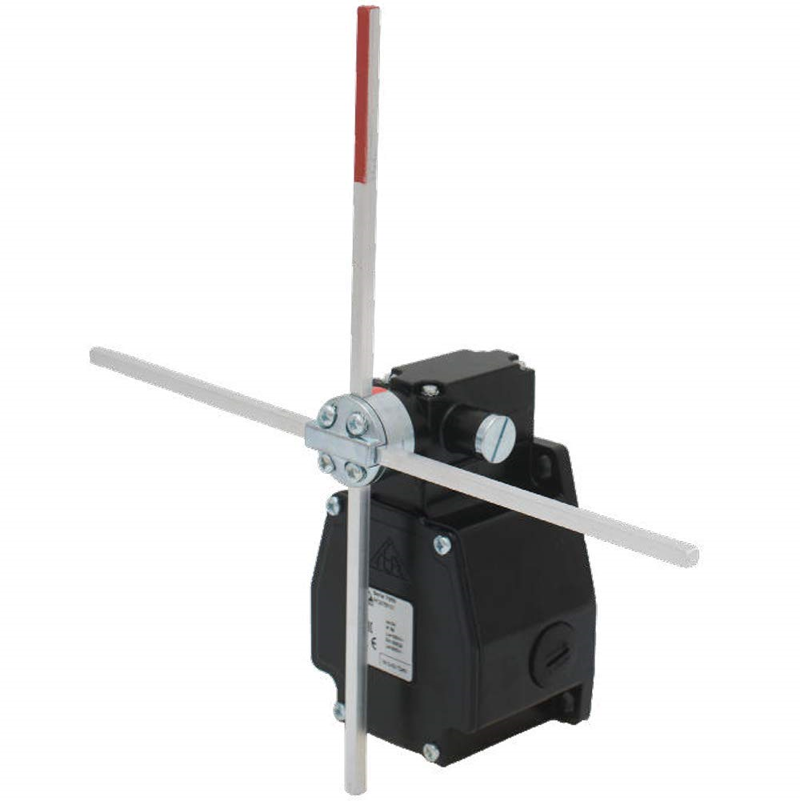

ROTARY LIMIT SWITCH (4 WAY)
SKU: PF26755100
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications:
Position limit switches in the 7551 series.
Designed for controlling complex working machinery.
These switches are suited for usage in very harsh situations under extreme working conditions due to their materials, technical solutions, and large dimensions.
7551 series.
X-rod actuators.
Positions: 90°, 4 (fixed).
Description: A limit switch that rotates.
2NO + 2NC is the contact configuration.
IP65 is the index protection IP.
250 V is the rated operational voltage.
Rated operational current: 3 A.
10 A is the rated thermal current.
AC 15 is the utilization category.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Designed to ensure optimal performance even under the most demanding working circumstances.
4 maintained position rods spaced every 90°.
4 holes for fixings.
For safety purposes, positively open NC contacts.
The mechanical life of switches is 1 million operations.
Maximum number of operations per hour: 3600.
IP protection degree: 7551–7552 are categorized as IP66 and come with a specific M20 cable clamp.
-40°C to +70°C extreme temperature tolerance.
It has an enclosure made of die-cast aluminium alloy with sintered material bushings and a Zama head that resists rust, chemical aggression, and all forms of severe impact. This minimizes the need for routine maintenance operations on the head.
Every part and material that is utilized ensures that the device is protected from dust and water and is resistant to wear.
