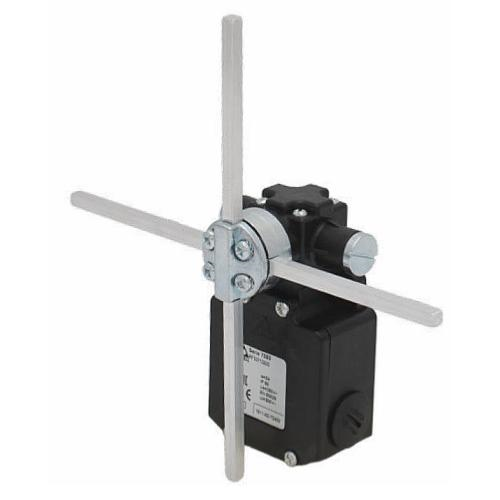

ROTARY LIMIT SWITCH (3 WAY)
SKU: PF33710100
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications:
X-FSC series.
T-rod actuators.
Positions: 90°, 3 (fixed).
Description: A limit switch that rotates.
2NO + 2NC is the contact configuration.
IP65 is the index protection IP.
250 V is the rated operational voltage.
Rated operational current: 3 A.
10 A is the rated thermal current.
AC 15 is the utilization category.
Buy currently uses Select Automation shop pricing and checkout.
Features:
2 fixing holes.
For safety functions, positively open NC contacts.
The mechanical life of switches is 1 million operations.
Maximum number of operations per hour: 3600.
IP protection degree: With the specific cable clamp M20, X-FSC and X-FRZ are classified as IP65.
-25°C to +70°C extreme temperature resistance.
Head and enclosure in thermoplastic material.
Every part and material that is utilized ensures that the device is protected from dust and water and is resistant to wear.
