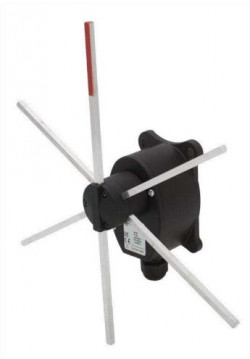

X-ROD 4 POSITION ROTATING LIMIT SWITCH 4NC
SKU: PF48040001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications:
Position limit switches from the Tango series:
Overhead traveling cranes are controlled by tango position limit switches.
X-type rods can be moved to four maintained positions using 1NC slow-action switches.
Tango series.
X-rod actuator.
Positions: 60°, 4 (fixed).
Description: A limit switch that rotates.
4 x NC is the contact configuration.
IP65 is the index protection IP.
250 V is the rated operational voltage.
Rated operational current: 3 A.
10 A is the rated thermal current.
AC 15 is the utilization category.
Buy currently uses Select Automation shop pricing and checkout.
Features:
To make installation and maintenance procedures easier, modern design and overall dimensions were examined.
4 fixing holes.
4 maintained position rods spaced every 60°.
The mechanical life of switches is 1 million operations.
Maximum number of operations per hour: 3600.
Tango's IP protection level is classified as IP65.
-25°C to +70°C extreme temperature resistance.
To ensure a long lifespan and consistent function, the enclosure and head are made of thermoplastic material (nylon reinforced with fiberglass), while the internal components are made of techno polymers.
Every part and material that is utilized ensures that the device is protected from dust and water and is resistant to wear.
