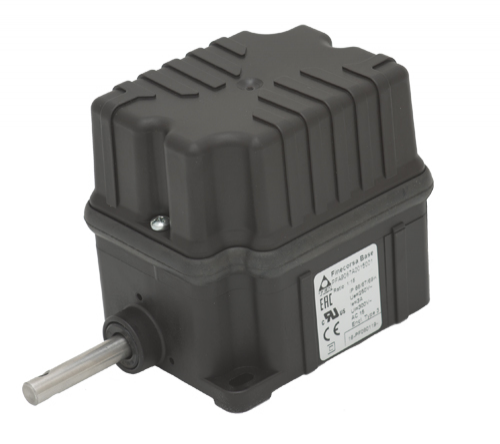

1:25 BASE WORMGEAR LIMIT SWITCH
SKU: PFA9142A0025001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Wormgear limit switches in the BASE series:
Industrial machinery is moved by means of rotary limit switches, which also function as auxiliary controllers for electric motors via a power interface.
The switch shaft can be attached to the motor, and after a preset number of revolutions, the cams will operate a switch.
Precision cam adjustment screws allow for high-accuracy settings for each cam.
Buy currently uses Select Automation shop pricing and checkout.
Details:
Base series.
1:125 in ratio.
There are two micros.
Description: Mini wormgear limit switch.
IP42 index protection.
Category of Utilization: AC 15.
10 A is the rated thermal current.
250 V is the rated operational voltage.
Rated operational current: 3 A.
CONNECTIONS: Faston 6.3 mm.
(H) 86 x (W) 70 x (D) 106 are the dimensions in MM.
