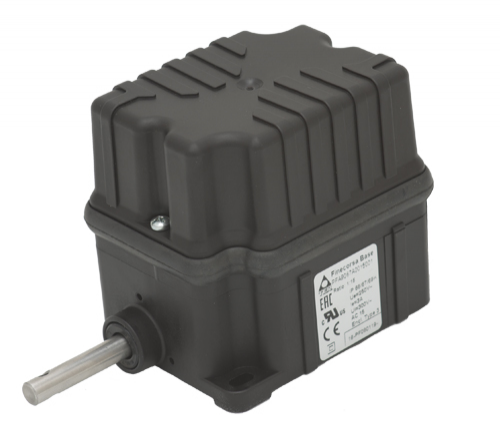

1:50 BASE WORMGEAR LIMIT SWITCH
SKU: PFA9142A0050001
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Wormgear limit switches in the BASE series:
Industrial machinery is moved by means of rotary limit switches, which also function as auxiliary controllers for electric motors via a power interface.
The switch shaft can be attached to the motor, and after a preset number of revolutions, the cams will operate a switch.
Precision cam adjustment screws allow for high-accuracy settings for each cam.
Buy currently uses Select Automation shop pricing and checkout.
Details:
Basic series.
RATIO: 1:50.
There are 2 micros.
Description: Mini wormgear limit switch.
IP42 FOR INDEX PROTECTION.
AC 15 is the category for utilization.
Thermal current is rated at 10 A.
250 V is the rated operational voltage.
RATED OPERATIONAL CURRENT: 3A.
CONNECTIONS: 6.3 mm Faston.
Dimensions (MM): 106 (D) x 70 (W) x 86 (H).
