Rotary limit switches:

• By reading the rotation angle and/or counting the number of revolutions of a shaft, rotary limit switches are used to control and measure the movement of industrial machinery.
• Through a power interface, they operate as an auxiliary controller for electric motors.
• The switch shaft can be attached to a motor, and after a preset number of revolutions, the cams will operate a switch.
• Precision cam adjustment screws allow for high-accuracy settings for each cam.
• Category of utilization: AC 15.
• Rated voltage for operation: 250 V.
• Temperature range for operation: -40°C to +80°C.
• Rated current: 10A thermal / 3A operational.
• Standard compliance: EN 60204-1/35, 60947-1/5-1, 60529, CSA-C22.2 No 14-13, UL 508.

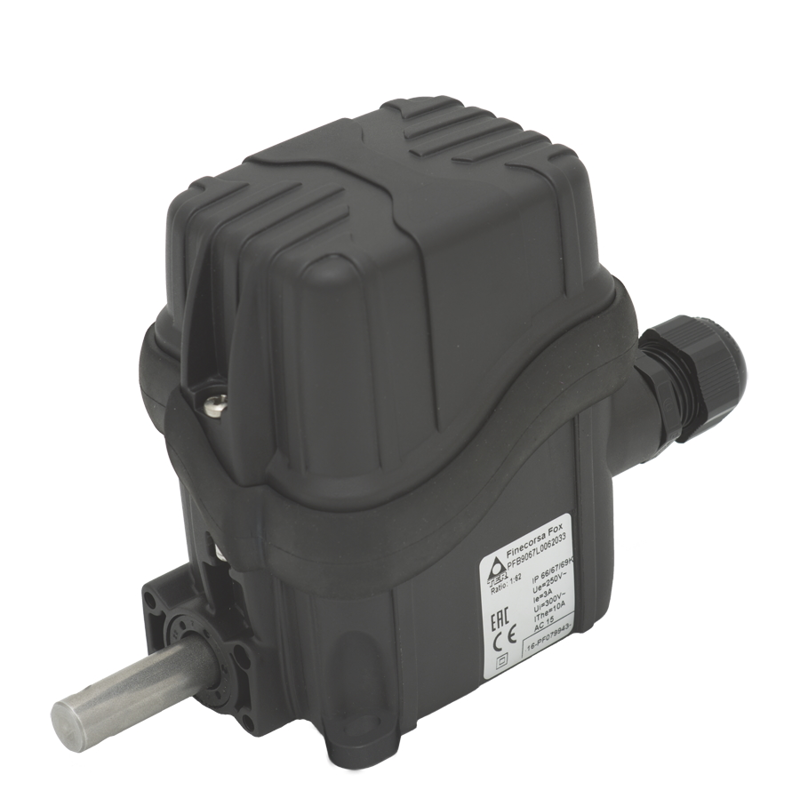

Wormgear limit switches in the FOX series
