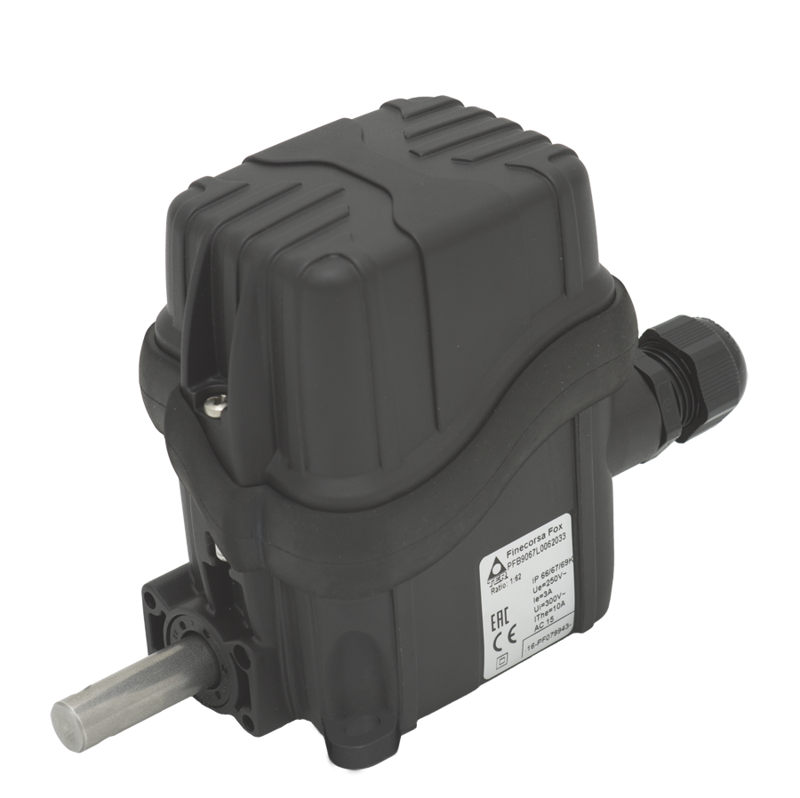

1:250 FOX WORMGEAR LIMIT SWITCH

Rotary limit switches: By reading the rotation angle and/or counting the number of revolutions of a shaft, rotary limit switches are used to control and measure the movement of industrial machinery. Through a power interface, they operate as an auxiliary controller for electric motors. The switch shaft can be attached to a motor, and after a preset number of revolutions, the cams will operate a switch. Precision cam adjustment screws allow for high-accuracy settings for each cam. Category of utilization: AC 15. Rated voltage for operation: 250 V. Temperature range for operation: -40°C to +80°C. Rated current: 10A thermal / 3A operational. Standard compliance: EN 60204-1/35, 60947-1/5-1, 60529, CSA-C22.2 No 14-13, UL 508. Wormgear limit switches in the FOX series: Degree of protection: IP66, IP67, and IP69K. Rated operational voltage: 250 V. Mechanical life: 10 x 1,000,000 operations. Connections: self-raising clamps on screw-type terminals.
