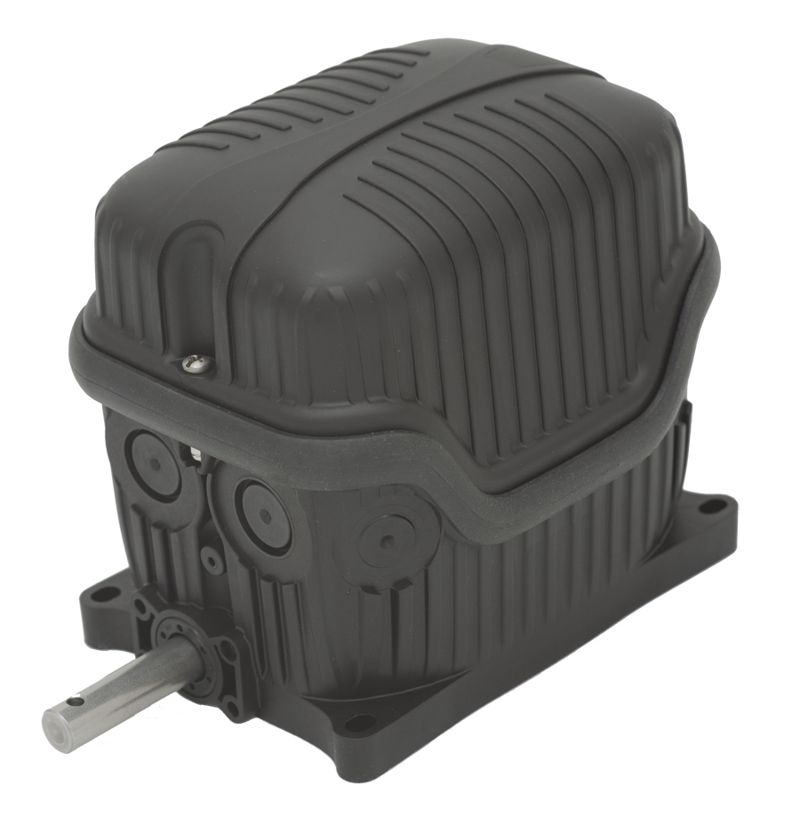

1:100 OSCAR WORMGEAR LIMIT SWITCH
SKU: PFC9067L0107014
Out of stock
Availability: Out of Stock
Short Description
Rotary limit switches:
- By reading the rotation angle or counting the number of revolutions of a shaft, rotary limit switches are used to control and measure the movement of industrial machinery.
- Through a power interface, they operate as an auxiliary controller for electric motors.
- The switch shaft can be attached to a motor, and after a preset number of revolutions, the cams will operate a switch.
- Precision cam adjustment screws allow each cam to be set with high accuracy.
- AC 15 is the utilization category.
- The rated operational voltage is 250 V.
- 40°C to 80°C is the operational temperature.
- Rated current: 10A thermal; 3A operational.
- Conformance to EN 60204-1/35, UL 508, CSA-C22.2 No 14-13, 60947-1/5-1, and 60529 standards.
Wormgear limit switches, Oscar series:
Details:
- Oscar Series.
- 1:100 in ratio.
- Number of Micro's: 2.
- Description: An industrial wormgear limit switch.
- IP66, IP67, and IP69K are the index protection IPs.
- AC 15 is the utilization category.
- 10 A is the rated thermal current.
- 250 V is the rated operational voltage.
- Operational current is rated at 3A.
- CONNECTIONS: self-raising clamp screw terminals.
- The dimensions in millimeters are (H) 134.5 x (W) 119 x (D) 146.5.
