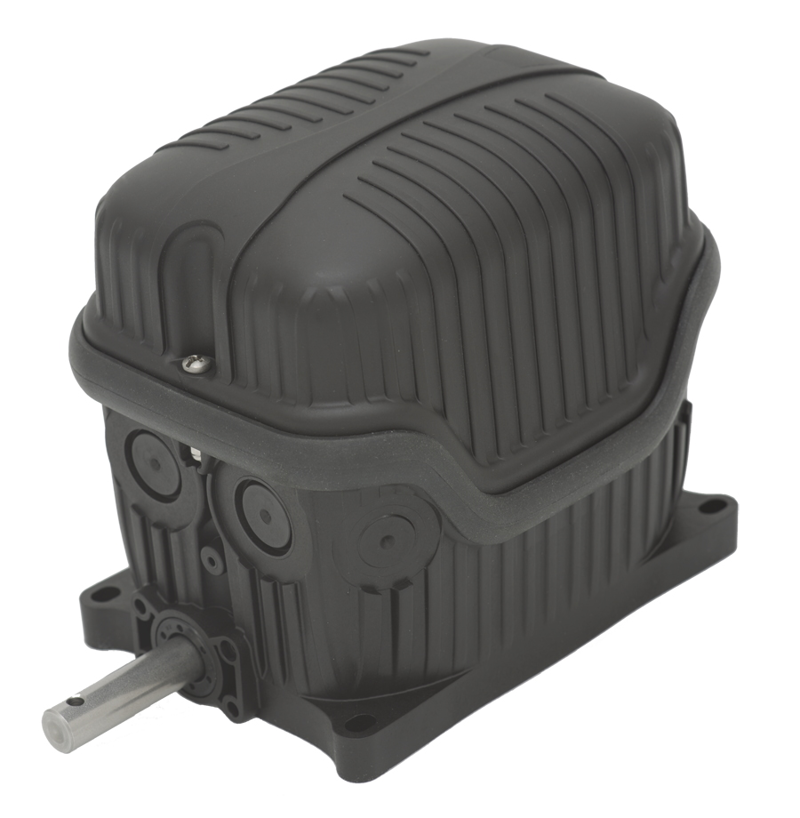

1:200 OSCAR WORMGEAR LIMIT SWITCH

Rotary limit switches: By reading the rotation angle or counting the number of revolutions of a shaft, rotary limit switches are used to control and measure the movement of industrial machinery. Through a power interface, they operate as an auxiliary controller for electric motors. The switch shaft can be attached to a motor, and after a preset number of revolutions, the cams will operate a switch. Precision cam adjustment screws allow each cam to be set with high accuracy. AC 15 is the utilization category. The rated operational voltage is 250 V. 40°C to 80°C is the operational temperature. Rated current: 10A thermal; 3A operational. Conformance to EN 60204-1/35, UL 508, CSA-C22.2 No 14-13, 60947-1/5-1, and 60529 standards. Wormgear limit switches, Oscar series: Can be equipped with up to two cam sets (up to ten switches), potentiometers (alone or on top of cam sets with a maximum of 3 switches), and Yankee absolute encoders (on top of cam sets with a maximum of 4 switches).
