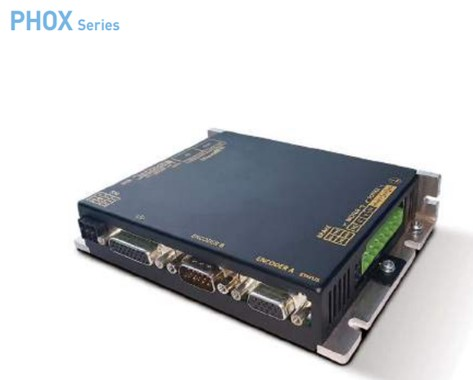

PHOX 6 Amp 24V - 80V DC Servo Ethercat Closed-loop Pos./ Index Functions
SKU: PHOX06-080NS
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
PHOX Series (Low Voltage DC Drive):
Control in real time using Ether CAT.
Fast synchronization method and real-time capability.
Supports FoE, EoE, and CoE.
Increased Frequency of Speed Response (1 kHz).
Enhanced chip, ether cat, and 16-bit bus communication rates as well as enhanced communication speed.
Switching frequency is variable: 16 / 32 / 48 kHz.
Complete closed loop control.
Select from dual feedback control, fully closed loop control, and semi-closed loop control.
Quick response is possible with both internal and external encoder position values when using
fully closed-loop control.
When a machine is operating, high-precision control is ensured by fully closed-loop control.
A single-axis position module is included in the programming function.
Pulse-input positioning control mode.
Without the need for a position control module, offers position control via I/O or HMI.
Supports indexing mode support.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
All-in-one DC Drive Solution: Rotary Linear DD motor and 3rd party motor support Conventional interface (pulse train Analog indexing) + Fieldbus (Ether CAT) Simple motion control library support.
Main input power supply: DC 24~80(V).
Control input power supply: DC 24~80(V).
Rated current: 6A.
Peak current: 18A.
1st Encoder/ Encoder A: Quadrature (Max. 10Mpps after X4), with and without Halls, Differential, Serial encoder (absolute, incremental), BiSS-(B, C), EnDat 2.2, Tamagawa serial, SSI.
2nd Encoder/Encoder B: Quadrature (Max. 10Mpps after X4), without Halls, Differential, Serial encoder (absolute, incremental), BiSS-(B, C), EnDat 2.2, Tamagawa serial, SSI, Analog Encoder: Sinusoidal (1Vpp), Analog Hall (SIN/COS), Resolver (Optional).
Speed control range: max. 1:5000.
Frequency response: Max. 1 (kHz) or above (When using 19bit serial encoder).
Input frequency: 4 (Mpps), Lind drive.
Safety function: 2 Input channels (STO1, STO2).
Encoder output type: AO (+/-), BO (+/-), ZO (+/-) (Line drive output max. 6.4Mpps).
Operating temperature: 0~50°C/ -20~65°C.
Operating humidity: below 80% RH/ below 90% RH (avoid dew-condensation).
Environment: Indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust.
