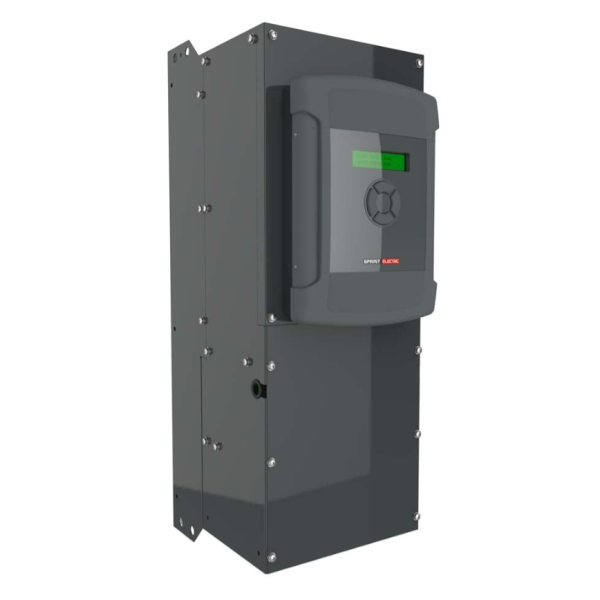

High-performance digital 2Q DC Drive, PL315
SKU: PL315
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-performance digital 2-quadrant DC drive, the Sprint PL315 is made for uses where precise control over DC motors is necessary.
It has an output power of up to 315kW and can support a supply voltage range of 12V to 500VAC.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage: 12V - 500VAC.
Output Power: Up to 315kW.
Output Current: Up to 750A.
Control: 2-quadrant (forward/reverse).
Cooling: Naturally vented.
User Adjustable: Max motor speed, min motor speed, up ramp, down ramp, stability, Imax, IR comp, AVF/Tach switch, speed range switch, AC voltage selector, signal level comparator.
Protection: Overload and stall protection.
Additional Features: Push-button reversing function, easy to access drive adjustments, plug-on screw terminals.
