PLXD Thyristor Stack Controller
SKU: PLXD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

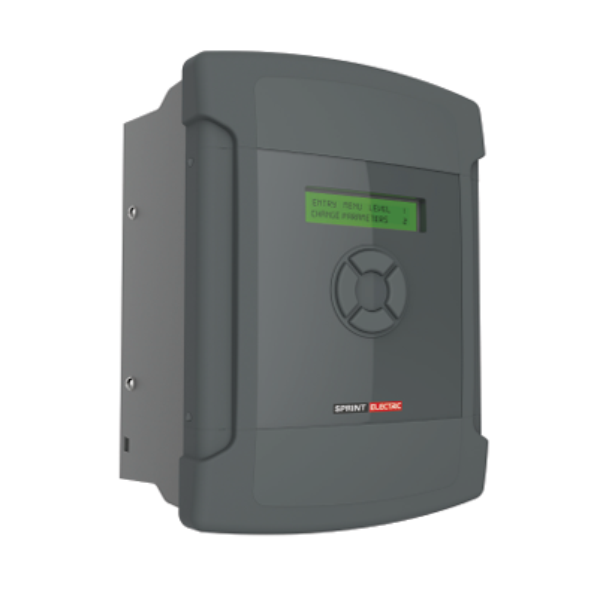

A sturdy and adaptable tool for managing external 3-phase thyristor stacks for DC motors is the Sprint Electric PLXD Thyristor Stack Controller.
It offers gate driving pulses with a primary pulse current of up to 1.5 Amp2 for pulse transformers supplied by the customer.
Six-pulse 4-quadrant regenerative anti-parallel bridges (12 thyristors) and 6-pulse 2-quadrant bridges (6 thyristors) are among the stack configurations that the PLXD can handle.
Additionally, it has terminals for heat sensor switches, isolated armature current signals, field signals, and high voltage armature voltage feedback.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Gate Drive Pulses: Up to 1.5 Amp.
Stack Configurations:
6-pulse 2 Quadrant bridge (6 thyristors).
2 bridges in parallel (12 thyristors).
6-pulse 4 Quadrant regen anti-parallel bridge (12 thyristors).
Armature Voltage Monitoring: Up to ±1000 Volts DC.
Armature Current Monitoring: Up to 32 Amps.
Field Bridge Supply Input Voltage: Adjustable.
Mounting: DIN rail.
Protection: Short circuit protection for +24V supply.
Control Terminals: Plug-in screw terminal variety.
Additional Features:
External field feedback signal.
User-supplied primary gate pulse transformer drivers.
12 pulse transformer networks for 2 or 4 quadrant bridges.
Armature burden rectifier network.
2 pulse transformer networks for external field bridge.
