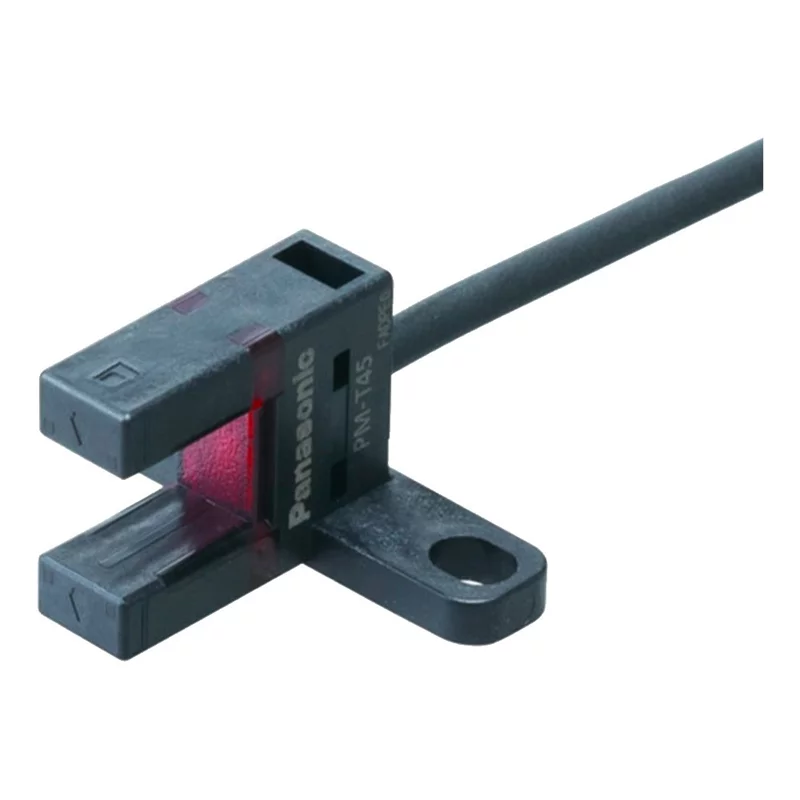

MINI U BEAM PHOTO SENS PNP T TYPE
SKU: PM-T45P
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The main features of the PM series U type miniature sensor are:
Multi-angle operation indicator.
Beam marks for simple alterations.
With M3 screws, all models are easily mounted.
Large, easy-to-see functioning indication.
Standard on all models are three protection circuits.
Increased beam emitting/receiving distance by 6 mm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: PM series.
DESCRIPTION: U type miniature photoelectric sensor.
SUPPLY VOLTAGE: 5 - 24 VDC.
DIFFUSED: No.
RETRO-REFLECTIVE: No.
POLARISED RETRO: No.
THROUGH-BEAM: Yes.
SENSING DISTANCE (MM): 6.
PNP: Yes.
NPN: No.
LIGHT-ON: Yes.
DARK-ON: Yes.
CONNECTOR: T type.
OUTPUT: PNP/NPN open-collector transistor max. 50mA.
LED INDICATION: Orange (light received).
HOUSING MATERIAL: PBT.
INDEX PROTECTION: IP64.
DIMENSIONS (MM): 18 mm x 60 mm.
CABLE CONNECTION: 1 meter.
