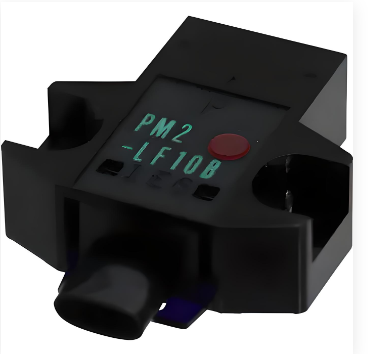

CONVERGENT PHOTO SENS PNP 2.5-8mm PM2-LF10B
SKU: PM2-LF10B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
PM-2 convergent reflection detecting miniature sensor:
Because of its compact and durable design, the PM2 series can be used in a wide range of applications.
The ""U""-shaped form broadens the variety of applications.
Because the light beam is fixedly focused, PM2 sensors allow for exact object recognition within a set detecting range.
The PM2 series measures independently of the background, detecting dark or somewhat reflecting objects as well as extremely thin objects (> 0.05mm).
Key features:
Object to be sensed.
termination of a connector.
Dark object detectable.
Response time is approximately 20 s.
Detection is independent of background.
Stable detection using convergent reflective mode.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: PM2 series.
DESCRIPTION: Convergent reflection sensing miniature sensor.
SENSING TYPE: Front sensing.
SUPPLY VOLTAGE: 5 - 24 VDC.
DIFFUSED: Yes.
RETRO-REFLECTIVE: No.
POLARISED RETRO: No.
THROUGH-BEAM: No.
SENSING DISTANCE (MM): 2.5 – 8.
PNP: Yes.
NPN: No.
LIGHT-ON: No.
DARK-ON: Yes.
CONNECTOR: Solder.
OUTPUT: PNP/NPN open-collector transistor max. 50mA.
LED INDICATION: Orange (light received).
HOUSING MATERIAL: PBT.
INDEX PROTECTION: IP67.
DIMENSIONS (MM): 18 mm x 60 mm.
CABLE CONNECTION: 1 meter.
