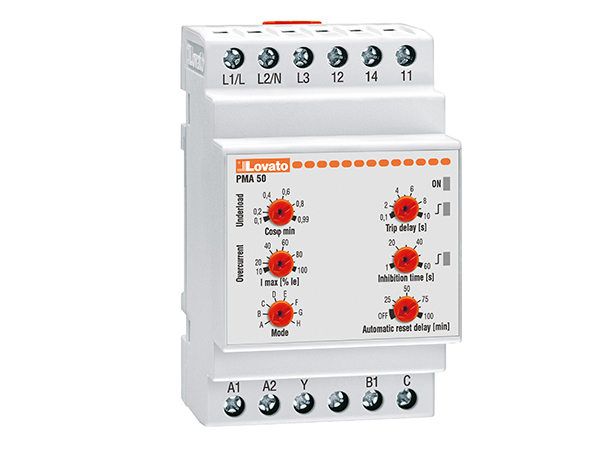

PUMP PROTECTION RELAY 380-415VAC
SKU: PMA50A415
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
PM series pump protection relay:
Range of voltage control: 80 to 660 VAC.
Systems with one or three phases (optional).
Minimum cosϕ and maximum AC current. postponed travel.
Inaccurate phase sequence and phase loss (instantaneous trip).
Pump protection relay with an extra AC power source to prevent dry running.
Buy currently uses Select Automation shop pricing and checkout.
Adjustments:
Maximum cosϕ cutoff: 0.1-0.99.
Maximum current threshold (over): 10–100%.
Trip time for maximum current and minimum cosϕ: 0.1–10 s.
Inhibition time: 1–60 seconds for external input or power up.
Time of automatic reset: 100 minutes.
Now choose between 5A and 16A.
Specifications:
Series: PM series.
Description: Pump protection relay (against dry running).
Monitored Voltage: 380 - 440 VAC.
Module width (mm): 54 (aligns with standard MCB's).
