      PANEL MOUNT POWER SUPPLY 24VDC 108W

      SKU: PMT-24V100W2BA

      Out of stock

      Availability: Out of Stock

      Short Description
      Technical Data: Enclosed single-phase power supply with panel installation (chassis type) Panel mount PMT IEC 60068-2 states that power supplies with a broad working temperature range, shock and vibration resistance, and overvoltage and overcurrent protection are all available. PMT satisfies competitive price demands without sacrificing product requirements and component quality. Qualities: According to Telcordia SR-332, high MTBF > 700.000 hours. Complies with IEC/EN 61000-3-2 harmonic current standards. Class A; Accepts a universal AC input voltage without power de-rating (switchable 100/150W).

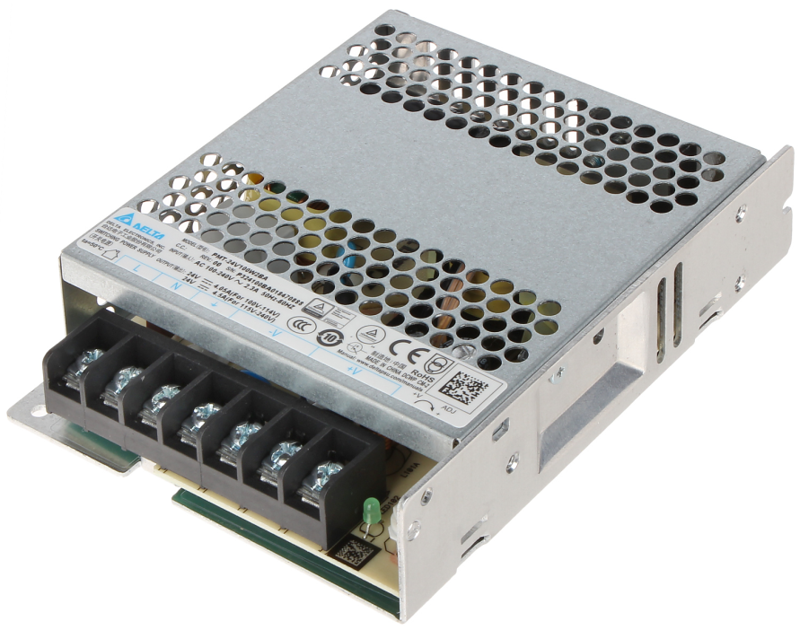

      PMT-24V100W2BA
      Alternative image 1
      Specifications: SERIES: PMT series DESCRIPTION: Enclosed panel mount power supplies INPUT VOLTAGE: 90 - 264 VAC OUTPUT VOLTAGE: 24 VDC RATED LOAD (W): 108 RATED LOAD (A): 4.5 HOUSING: Aluminium MOUNTING: Panel mount OPERATING TEMPERATURE: -20 to + 70 °C DIMENSIONS (MM): (H) 30 x (W) 97 x (D) 129
