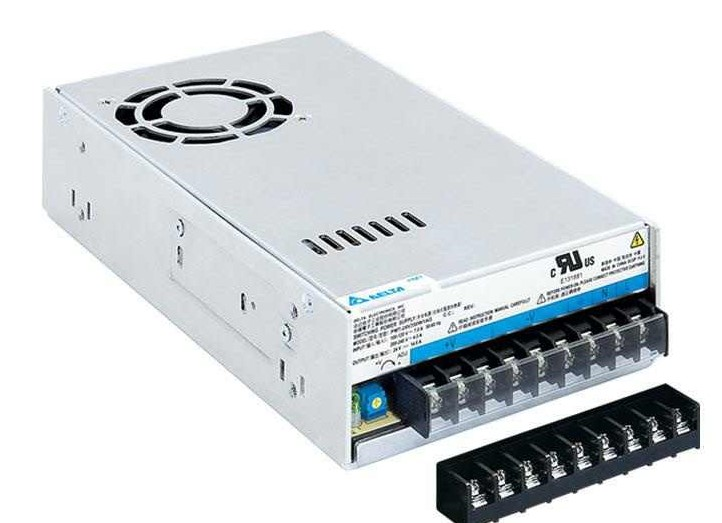

PANEL MOUNT POWER SUPPLY 24VDC 350W
SKU: PMT-24V350W1AK
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
General Features:
Enclosed single-phase power supply with panel installation (chassis type)
Panel mount PMT IEC 60068-2 states that power supplies with a broad working temperature range, shock and vibration resistance, and overvoltage and overcurrent protection are all available.
PMT satisfies competitive price demands without sacrificing product requirements and component quality.
Qualities:
According to Telcordia SR-332, high MTBF > 700.000 hours.
Complies with IEC/EN 61000-3-2 harmonic current standards.
Class A; Accepts a universal AC input voltage without power de-rating (switchable 100/150W).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: PMT series
DESCRIPTION: Enclosed panel mount power supplies
INPUT VOLTAGE: 180 - 264 VAC
OUTPUT VOLTAGE: 24 VDC
RATED LOAD (W): 350
RATED LOAD (A): 14.6
HOUSING: Aluminum
MOUNTING: Panel mount
AC INPUT VOLTAGE: Selectable via switch
OPERATING TEMPERATURE: -20 to + 70 °C
DIMENSIONS (MM): (H) 50 x (W) 115 x (D) 215
