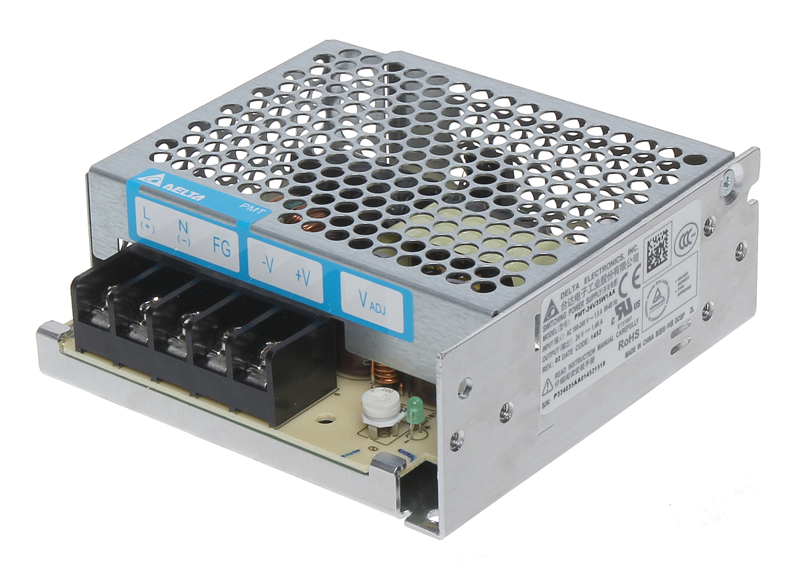

PANEL MOUNT POWER SUPPLY 24VDC 35W
SKU: PMT-24V35W1AA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
General Features:
Enclosed single-phase power supply with panel installation (chassis type).
Panel mount PMT IEC 60068-2 states that power supplies with a broad working temperature range, shock and vibration resistance, and overvoltage and overcurrent protection are all available.
PMT satisfies competitive price demands without sacrificing product requirements and component quality.
Qualities:
According to Telcordia SR-332, high MTBF > 700.000 hours.
Complies with IEC/EN 61000-3-2 harmonic current standards.
Class A; Accepts a universal AC input voltage without power de-rating (switchable 100/150W).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES PMT series,
DESCRIPTION Enclosed panel mount power supplies,
INPUT VOLTAGE 90 - 264 VAC,
OUTPUT VOLTAGE 24 VDC (adjustable),
RATED LOAD (W) 35,
RATED LOAD (A) 1.46,
HOUSING Aluminium,
MOUNTING Panel mount,
AC INPUT VOLTAGE,
OPERATING TEMPERATURE -20 to + 70 °C,
DIMENSIONS (MM) (H) 38 x (W) 98 x (D) 98,
