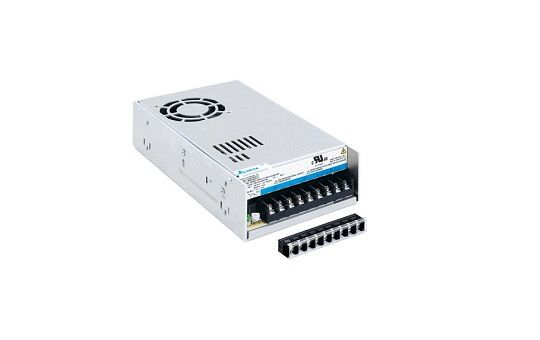

      PANEL MOUNT POWER SUPPLY 5VDC 300W

      SKU: PMT-5V350W1AM

      Out of stock

      Availability: Out of Stock

      Short Description
      General Features: Enclosed single-phase power supply with panel installation (chassis type). Panel mount PMT IEC 60068-2 states that power supplies with a broad working temperature range, shock and vibration resistance, and overvoltage and overcurrent protection are all available. PMT satisfies competitive price demands without sacrificing product requirements and component quality. Qualities: According to Telcordia SR-332, high MTBF > 700.000 hours. Complies with IEC/EN 61000-3-2 harmonic current standards. Class A;Accepts a universal AC input voltage without power de-rating (switchable 100/150W).
      PMT-5V350W1AM
      Alternative image 1
      Specification: SERIES: PMT series DESCRIPTION: Enclosed panel mount power supplies INPUT VOLTAGE: 180 - 264 VAC OUTPUT VOLTAGE: 5 VDC (adjustable) RATED LOAD (W): 300 RATED LOAD (A): 60 HOUSING: Aluminium MOUNTING: Panel mount AC INPUT VOLTAGE: AC input voltage selectable 90 - 132 VAC (or) 180 - 264 VAC - via switch OPERATING TEMPERATURE: -20 to + 70 °C DIMENSIONS (MM): (H) 50 x (W) 115 x (D) 215
