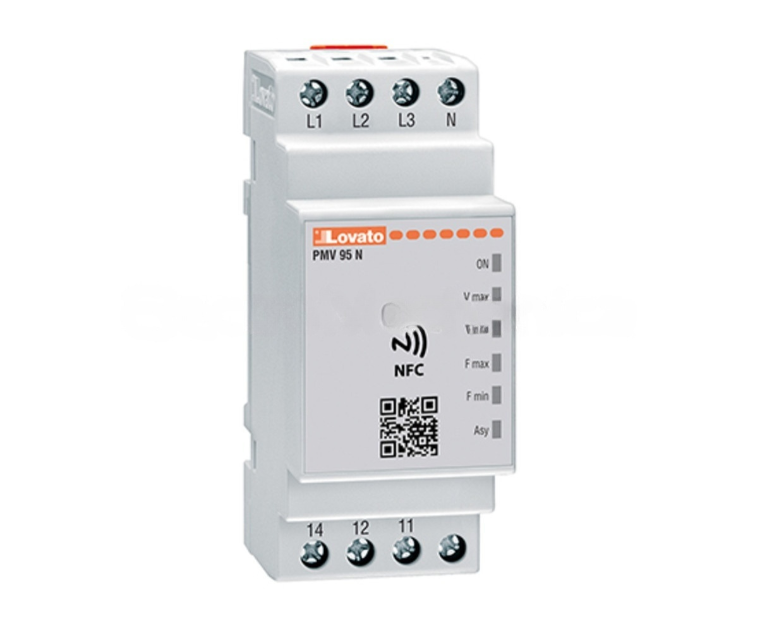

3PH VOLT. MONITOR M/FUNCTION+NFC
SKU: PMV95NA575NFC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
PM series modular protection relays:
Voltage watchers.
Self-powered voltage monitoring relays for both minimum and maximum voltage.
V max maximum voltage threshold that trips between 105 and 115% Ue.
V minimal voltage threshold for tripping, between 80 and 95% Ue.
Tripping with a 0.1–20-second reset time delay.
Buy currently uses Select Automation shop pricing and checkout.
Monitoring in three phases (without neutral):
Self-sustaining, capable of detecting phase loss, maximum and minimum voltage, and improper phase sequence.
Communication in the Near Field (NFC):
Programmable by NFC (no front adjustment knobs)
Programmable with an app and NFC technology on a tablet or smartphone
Using the app, you may secure access to the settings by creating a four-digit password.
Excellent accuracy in time settings and tripping thresholds is ensured by programming via NFC.
SERIES PM:
DESCRIPTION: Three-phase over/under voltage monitor with NFC
MONITORED VOLTAGE: 380 - 575 VAC
NUMBER OF PHASE: Three phases
MODULE WIDTH (MM): 35 (aligns with standard MCB's)
