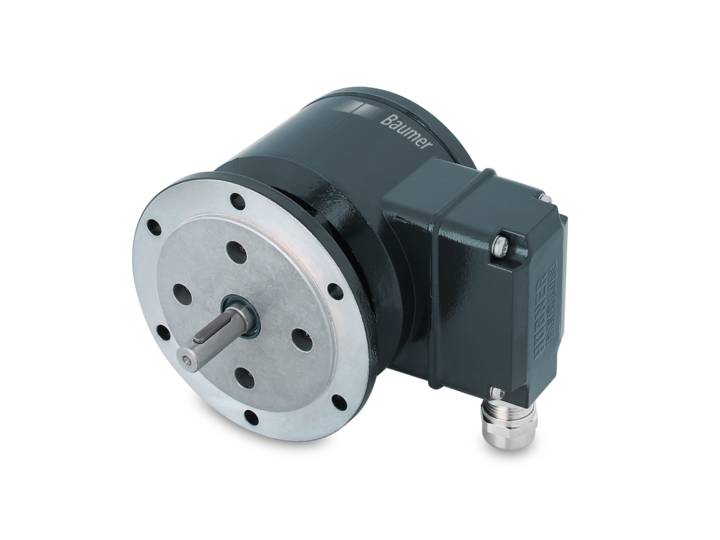

Industrial Duty Incremental Encoders, POG10-DN1024-I
SKU: POG10-DN1024-I
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Solid shaft with EURO flange B10, 1024 pulses per revolution:
HTL output driver for cable lengths up to 350 meters.
Extremely resistant to shock and vibration.
Double-sided bearing for longer-lasting performance.
Large terminal boxes rotate 180 degrees.
Buy currently uses Select Automation shop pricing and checkout.
Electrical ratings:
Voltage supply: 9–30 VDC.
w/o load consumption: ≤100 mA.
Pulses per revolution: 1024.
Phase shift: 90° ±20°.
Duty cycle: 40–60%.
Reference signal: zero pulse with a width of 90°.
Sensing method: optical.
Output frequency: <120 kHz.
Output signals: K1, K2, K0 + inverted.
Output stages: HTL-P (power line driver).
Interference immunity: EN 61000-6-2.
Emitted interference: EN 61000-6-3.
Approved by UL, CE, and E217823.
Mechanical design:
Size (flange): ø115 mm.
Shaft type: ø11 mm solid shaft.
Admitted shaft load: ≤300 N axial and ≤450 N radial.
Flange: Euro flange B10.
EN 60529 Protection Level: IP 66.
Operating speed (mechanical): ≤12000 rpm.
Operating torque: 2 Ncm.
Rotor moment of inertia: 212 g cm².
Material: die-cast aluminium for the housing; stainless steel for the shaft.
Operating temperature range: -40 to +100 °C.
Resistance: IEC 60068-2-6, vibration 20 g, 10-2000 Hz; IEC 60068-2-27, shock 200 g, 6 ms.
Corrosion protection: IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO 12944-2.
Connection: Terminal box.
The weight is approximately 1.9 kg.
