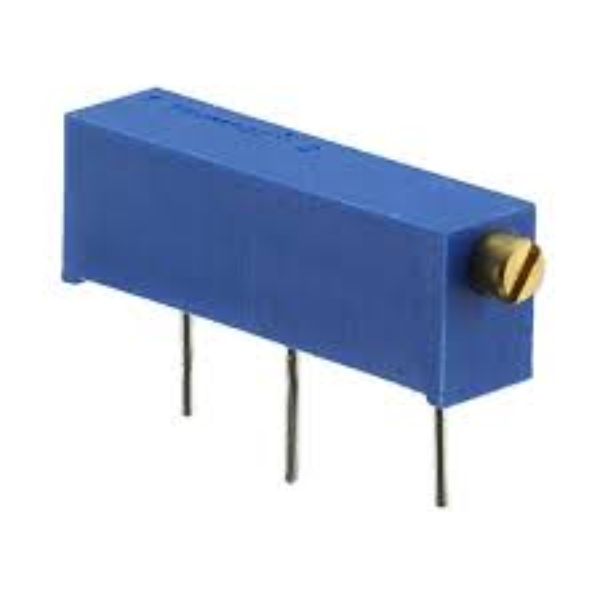

Trimmer Potentiometer MTurn S/ADJ 3006P
SKU: POT-0001-G08
Sold by Select Automation
Final price R 5.98
R 5.20 excl. VAT
Availability: In Stock (14 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 3006P 101 306E Trimmer Potentiometer is a high-precision, multi-turn adjustable resistor intended for fine-tuning and calibration in electronic circuits.
This trimmer potentiometer is noted for its dependability and accuracy, making it suitable for a variety of applications, including industrial and consumer electronics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: 3006P 101 306E.
Type: Multi-turn trimmer potentiometer.
Adjustment: Side adjustment.
Resistance: 100 ohms.
Tolerance: ±10%.
Power Rating: 0.5W at 70°C.
Temperature Coefficient: ±100 ppm/°C.
Operating Temperature Range: -55°C to +125°C.
Rotational Life: 200 cycles.
Termination Style: Solderable pins.
Dimensions: 7.62mm (length) x 7.62mm (width) x 4.57mm (height).
