Trimmer M/Turn S/ADJ 1K 3006P
SKU: POT-0012-G08
Sold by Select Automation
Final price R 5.69
R 4.95 excl. VAT
Availability: In Stock (15 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

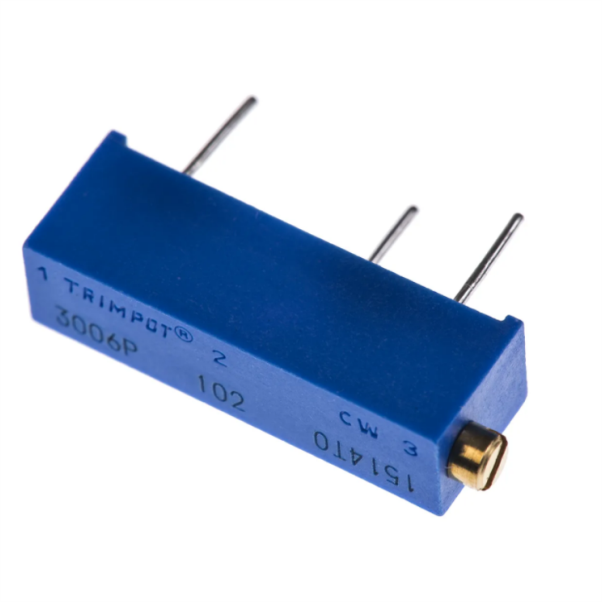

The 3006P 1K Trimmer Potentiometer is a high-precision, multi-turn adjustable resistor used for fine-tuning and calibration in electronic circuits.
This trimmer potentiometer is noted for its dependability and accuracy, making it suitable for a variety of applications, including industrial and consumer electronics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: 3006P 1K.
Type: Multi-turn trimmer potentiometer.
Adjustment: Side adjustment.
Resistance: 1,000 ohms (1K).
Tolerance: ±10%.
Power Rating: 0.75W.
Temperature Coefficient: ±100 ppm/°C.
Operating Temperature Range: -55°C to +125°C.
Rotational Life: 200 cycles.
Termination Style: Solderable pins.
Dimensions: 19.05mm (length) x 4.83mm (width) x 6.35mm (height).
