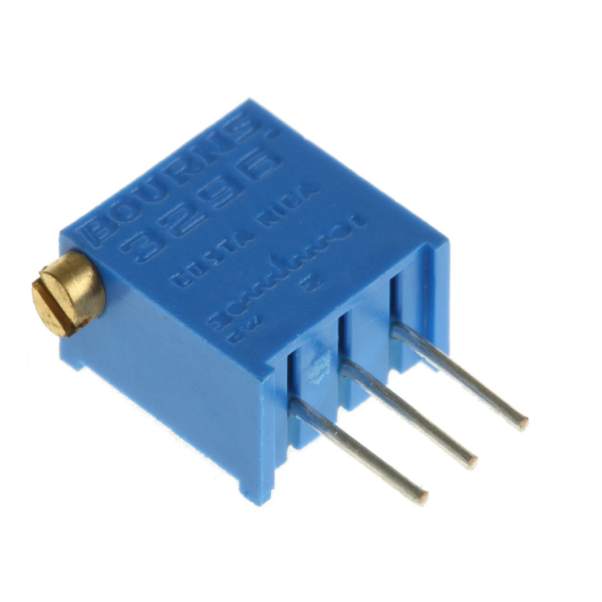

Trimpot M/Turn S/ADJ 1K 3296X 1K ohm
SKU: POT-0015-G08
Sold by Select Automation
Final price R 4.13
R 3.59 excl. VAT
Availability: In Stock (13 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 3296X 1K Trimmer Potentiometer is a high-precision, multi-turn adjustable resistor used for fine-tuning and calibration in electronic circuits.
This trimmer potentiometer is noted for its dependability and accuracy, making it suitable for a variety of applications, including industrial and consumer electronics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: 3296X 1K.
Type: Multi-turn trimmer potentiometer.
Adjustment: Side adjustment.
Resistance: 1,000 ohms (1K).
Tolerance: ±10%.
Power Rating: 0.5W at 70°C.
Temperature Coefficient: ±100 ppm/°C.
Operating Temperature Range: -55°C to +125°C.
Rotational Life: 200 cycles.
Termination Style: Solderable pins.
Dimensions: 10mm (length) x 10mm (width) x 4.83mm (height).
