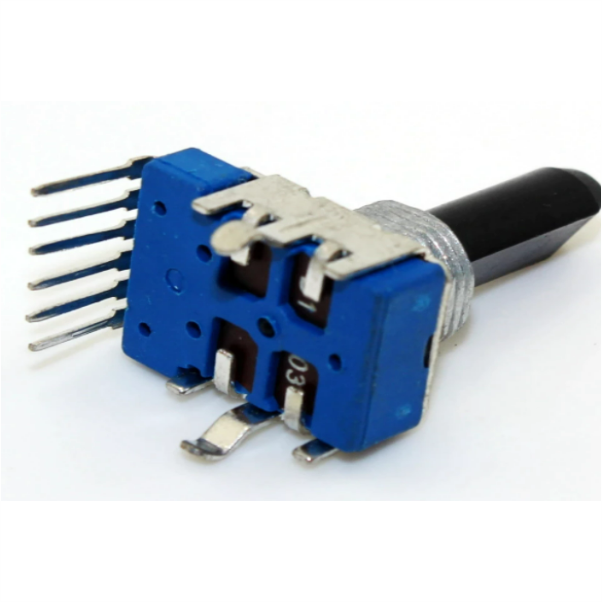

6 Pin Volume Control Potentiometer 20K
SKU: POT-0056-G09
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 6 Pin Volume adjust Potentiometer 20K is a high-quality component used to precisely adjust resistance in electrical circuits.
This dual-gang rotary potentiometer has a sturdy construction with metal and carbon film composition, ensuring durability and smooth operation.
It is commonly used for volume control in audio equipment, but it has a wide range of other uses that require changeable resistance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Dual-gang rotary potentiometer
Number of pins: 6.
Resistance Rating: 20 KΩ.
Tolerance Rating: ±20%.
Rated Power: 0.3 W.
Rotational Travel: 270°.
Maximum Operating Temperature: +90°C.
Minimum Operating Temperature: –10°C.
Mounting Style: Panel Mount.
Number of Turns: 3.
Termination Style: Pin.
