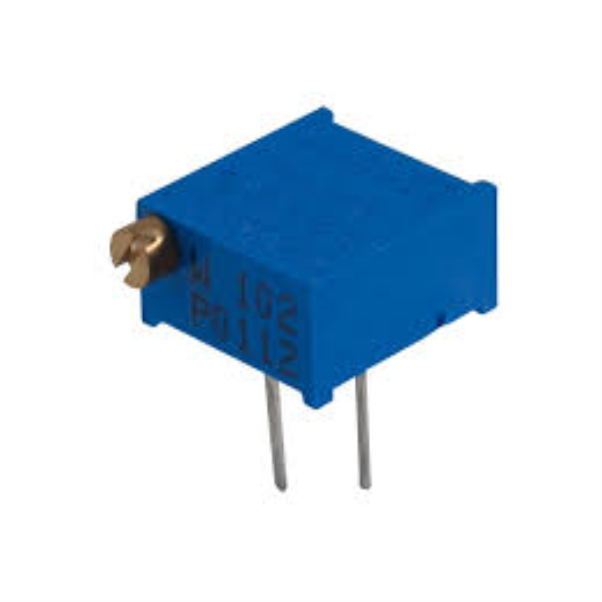

25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations, 50Kohm 10% 0.5W 100ppm/°C
SKU: POT-0062-G09
Sold by Select Automation
Final price R 97.83
R 85.07 excl. VAT
Availability: In Stock (3 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 25-Turn Through Hole Trimmer Resistor with Solder Pin Terminations is a precision component used to fine-tune resistance in electrical circuits.
This multiturn trimmer resistor has a sturdy design with a cermet element, ensuring durability and dependability.
It's employed in applications that require precise changes, like circuit calibration and tuning.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Resistance Rating: 50 KΩ.
Tolerance Rating: ±10%.
Power Rating: 0.5 W (1/2 W).
Temperature Coefficient: 100 ppm/°C.
Number of Turns: 25.
Adjustment Type: Top Adjustment.
Termination Style: Solder Pin.
Mounting Style: Through Hole.
Material: Cermet.
Dimensions: Rectangular - 9.60 mm x 5.00 mm.
Operating Temperature Range: -55°C to +125°C.
