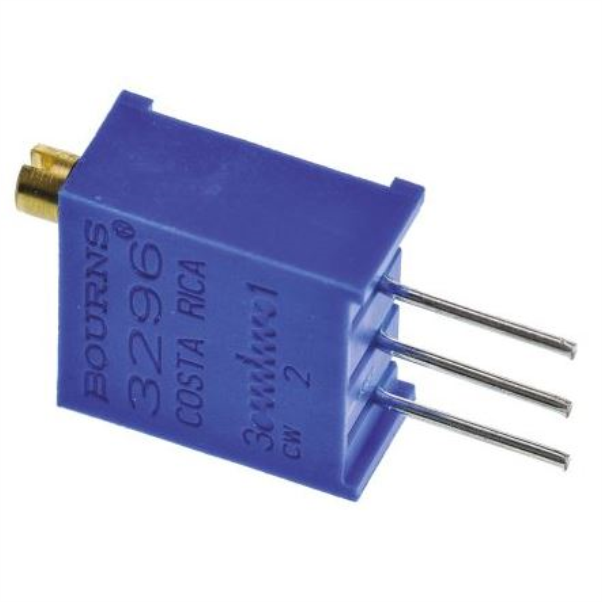

Carbon Trimmer Resistor with Solder Pin Terminations, 20Kohm 10%
SKU: POT-0064-G09
Sold by Select Automation
Final price R 60.92
R 52.97 excl. VAT
Availability: In Stock (28 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Carbon Trimmer Resistor with Solder Pin Terminations is a precision component used to fine-tune resistance in electrical circuits.
This trimmer resistor has a strong construction with a carbon core, ensuring durability and dependability.
It's employed in applications that require precise changes, like circuit calibration and tuning.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Resistance Rating: 20 KΩ.
Tolerance Rating: ±10%.
Power Rating: 0.5 W.
Temperature Coefficient: 100 ppm/°C.
Number of Turns: 20.
Adjustment Type: Top Adjustment.
Termination Style: Solder Pin.
Mounting Style: Through Hole.
Material: Carbon.
Dimensions: Rectangular - 9.60 mm x 5.00 mm.
Operating Temperature Range: -55°C to +125°C.
