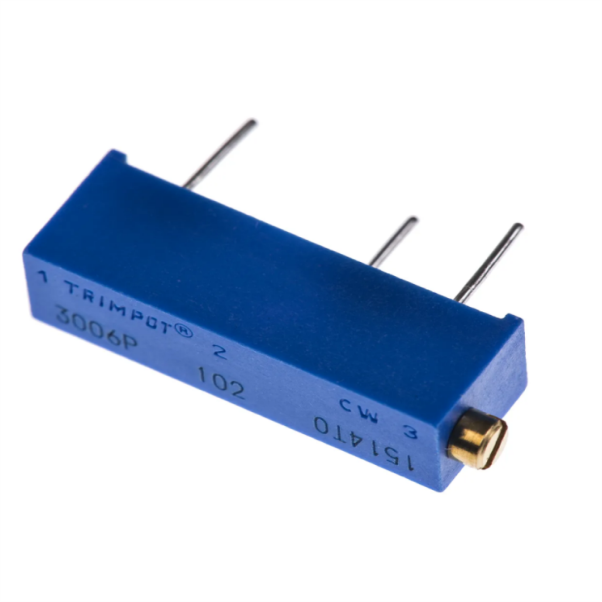

Carbon Trimmer Resistor with Solder Pin Terminations, 1Kohm 10%
SKU: POT-0065-G09
Sold by Select Automation
Final price R 66.03
R 57.42 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Carbon Trimmer Resistor with Solder Pin Terminations is a precision component developed to fine-tune resistance in electrical circuits.
This trimmer resistor has a sturdy design with a carbon element, ensuring durability and dependability.
It is utilized in applications that need precise adjustments, such as circuit calibration and tuning.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Resistance Rating: 1 KΩ.
Tolerance Rating: ±10%.
Power Rating: 0.5 W.
Temperature Coefficient: 100 ppm/°C.
Number of Turns: 20.
Adjustment Type: Top Adjustment.
Termination Style: Solder Pin.
Mounting Style: Through Hole.
Material: Carbon.
Dimensions: Rectangular - 9.60 mm x 5.00 mm.
Operating Temperature Range: -55°C to +125°C.
