3296Y-1-253LF 3296S Trimmer Potentiometer 25h
SKU: POT-0066-G09
Sold by Select Automation
Final price R 66.94
R 58.21 excl. VAT
Availability: In Stock (16 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

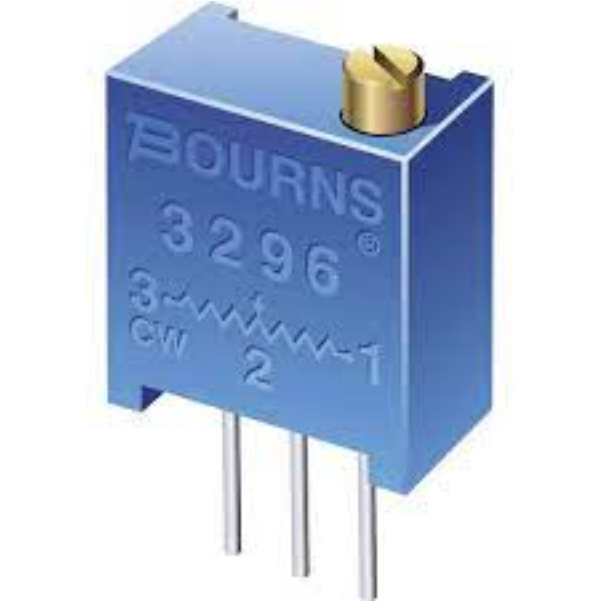

The 3296Y-1-253LF Trimmer Potentiometer from Bourns is a precision component used to fine-tune resistance in electronic circuits.
This multiturn trimmer potentiometer has a solid construction with a cermet element, ensuring durability and dependability.
It's employed in applications that require precise changes, like circuit calibration and tuning.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: 3296Y.
Resistance Rating: 25 KΩ.
Tolerance Rating: ±10%.
Power Rating: 0.5 W (1/2 W).
Temperature Coefficient: ±100 ppm/°C.
Number of Turns: 25.
Adjustment Type: Top Adjustment.
Termination Style: PC Pins.
Mounting Style: Through Hole.
Material: Cermet.
Dimensions: Rectangular - 9.53 mm x 4.83 mm.
Operating Temperature Range: -55°C to +125°C.
