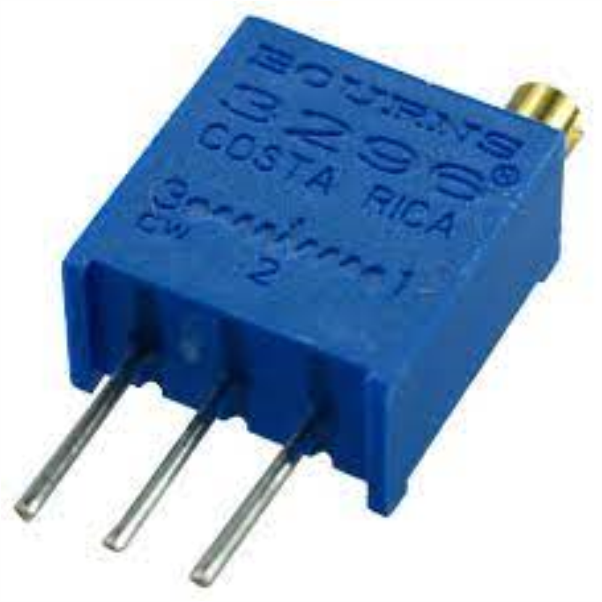

25K Top Adjust Trimmer Potentiometer
SKU: POT-0067-G09
Sold by Select Automation
Final price R 48.23
R 41.94 excl. VAT
Availability: In Stock (8 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 25K Ohm Potentiometer with Top Adjustment is a flexible component that allows for precise control of resistance in electronic circuits.
This potentiometer has a strong construction and a linear taper, which ensures smooth and reliable performance.
It is used for volume control, tuning, and circuit calibration.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Resistance Rating: 25 KΩ.
Tolerance Rating: ±20%.
Power Rating: 0.5 W (1/2 W).
Temperature Coefficient: 100 ppm/°C.
Adjustment Type: Top Adjustment.
Termination Style: Pin.
Mounting Style: Through Hole.
Material: Cermet.
Dimensions: Round - 8.89 mm x 3.81 mm.
Operating Temperature Range: -55°C to +125°C.
