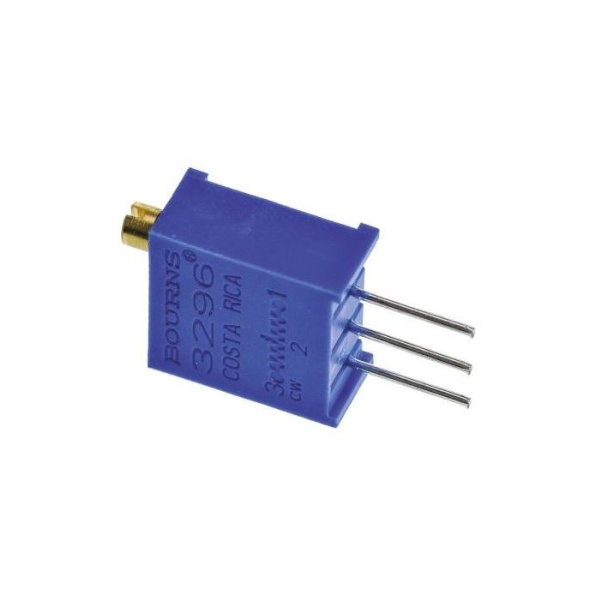

50K Top Adjust Trimmer Potentiometer
SKU: POT-0073-G09
Sold by Select Automation
Final price R 14.73
R 12.81 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 50K Top Adjust Trimmer Potentiometer is a flexible component that allows for fine adjustment of resistance in electrical circuits.
This trimmer potentiometer has a solid design and a linear taper, assuring smooth and dependable performance.
It is used for volume control, tuning, and circuit calibration.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Resistance Rating: 50 KΩ.
Tolerance Rating: ±10%.
Power Rating: 0.5 W.
Temperature Coefficient: 100 ppm/°C.
Number of Turns: 25.
Adjustment Type: Top Adjustment.
Termination Style: Pin.
Mounting Style: Through Hole.
Material: Cermet.
Dimensions: Rectangular - 9.60 mm x 5.00 mm.
Operating Temperature Range: -55°C to +125°C.
