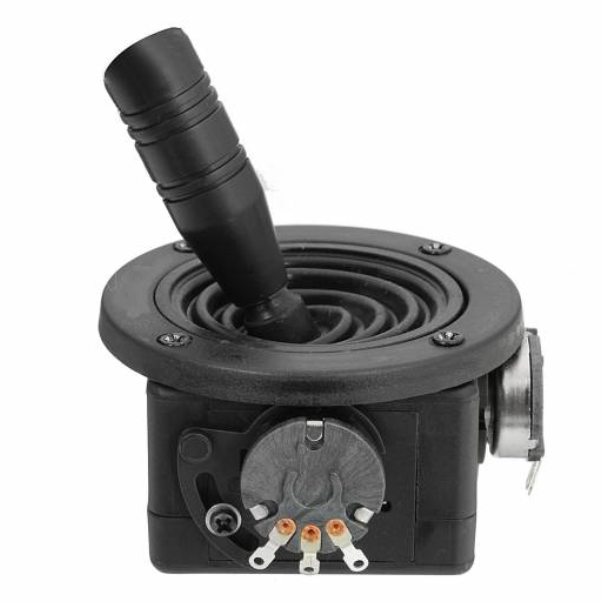

Joystick Potentiometer JH-D202X-R2 5K
SKU: POT-0078-G09
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Joystick Potentiometer JH-D202X-R2 5K is a versatile and high-performance input device that provides smooth and precise control over a wide range of systems and applications.
This joystick has a two-axis design with a ball joint that permits fluid movement in both the X and Y axes, making it suitable for controlling remote motorized vehicles, motorized cameras, factory automation, and electric wheelchairs.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: JH-D202X-R2.
Resistance Rating: 5 KΩ.
Number of Axes: 2 (X and Y).
Adjustment Type: Side Adjustment.
Termination Style: Solder Pin.
Mounting Style: Panel Mount.
Material: Plastic and Metal.
Dimensions: Standard size.
Operating Temperature Range: -10°C to +75°C.
Applications: Remote motorized vehicles, motorized cameras, factory automation, electric wheelchairs.
