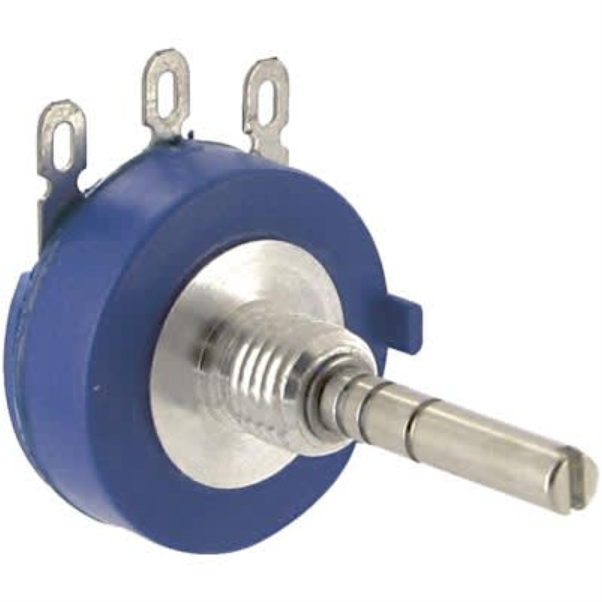

BOURNS 50K 2W Linear POT 3852A-282-503AL
SKU: POT-0080-G09
Sold by Select Automation
Final price R 312.21
R 271.49 excl. VAT
Availability: In Stock (3 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Bourns 50K 2W Linear Potentiometer 3852A-282-503AL is a high-quality component designed to precisely manage resistance in electronic circuits.
This potentiometer has a solid design with a cermet element, ensuring durability and dependability.
It is used for volume control, tuning, and circuit calibration.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: 3852.
Resistance Rating: 50 KΩ.
Tolerance Rating: ±10%.
Power Rating: 2 W.
Temperature Coefficient: ±150 ppm/°C.
Number of Turns: 1.
Adjustment Type: User Defined.
Termination Style: Solder Lug.
Mounting Style: Panel Mount.
Material: Cermet.
Dimensions: Diameter: 19.05 mm, Length: 22.23 mm.
Operating Temperature Range: -1°C to +125°C.
