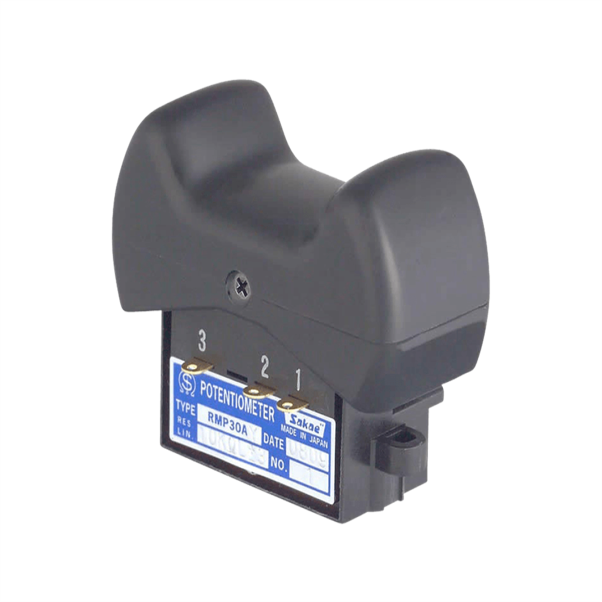

RMP30H 1-turn Potentiometer Hall Effect IC
SKU: POT-0081-G09
Sold by Select Automation
Final price R 5,230.73
R 4,548.46 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The RMP30H 1-turn Potentiometer Hall Effect IC is a flexible component that allows for precise control of resistance in electrical circuits.
This potentiometer has a seesaw-motion design with a Hall effect IC resistive element, resulting in smooth and reliable performance.
It is utilized for industrial joysticks and position sensors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: RMP30H.
Resistance Rating: 10 KΩ.
Applied Voltage: 5V DC ±10%.
Current Consumption: Approx. 7mA (Single output), Approx. 14mA (Dual output).
Dielectric Strength: 1 minute at 250 V AC.
Effective Electrical Angle: 30° ±5°.
Independent Linearity Tolerance: ±3% FS.
Insulation Resistance: Over 100MΩ at 250V DC.
Load Resistance: 10 KΩ min.
Operating Angle Range: ±15° ~ ±19° from centre position.
Output Voltage Range: Approx. 10% ~ 90% Vin.
Protection Grade: IP65.
Operating Temperature Range: -20°C to +60°C.
Life Expectancy: 5,000,000 operations.
