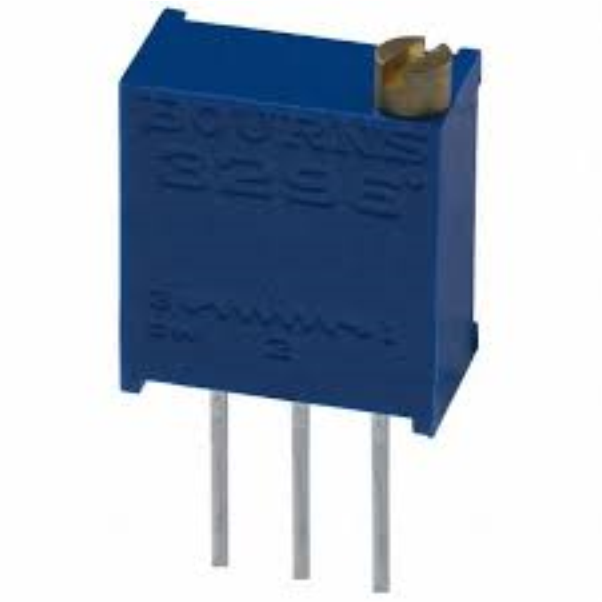

3296W Series 25-Turn Through Hole Trimmer Resistor with Pin Terminations, 10Kohm 10% 1/2W 100ppm/°C
SKU: POT-0082-G09
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 3296W Series 25-Turn Through Hole Trimmer Resistor is a precision component used to fine-tune resistance in electronic circuits.
This multiturn trimmer resistor has a sturdy design with a cermet element, ensuring durability and dependability.
It's employed in applications that require precise changes, like circuit calibration and tuning.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: 3296W.
Resistance Rating: 10 KΩ.
Tolerance Rating: ±10%.
Power Rating: 0.5 W (1/2 W).
Temperature Coefficient: 100 ppm/°C.
Number of Turns: 25.
Adjustment Type: Top Adjustment.
Termination Style: Pin.
Mounting Style: Through Hole.
Material: Cermet.
Dimensions: Rectangular - 9.53 mm x 4.83 mm.
Operating Temperature Range: -55°C to +125°C.
