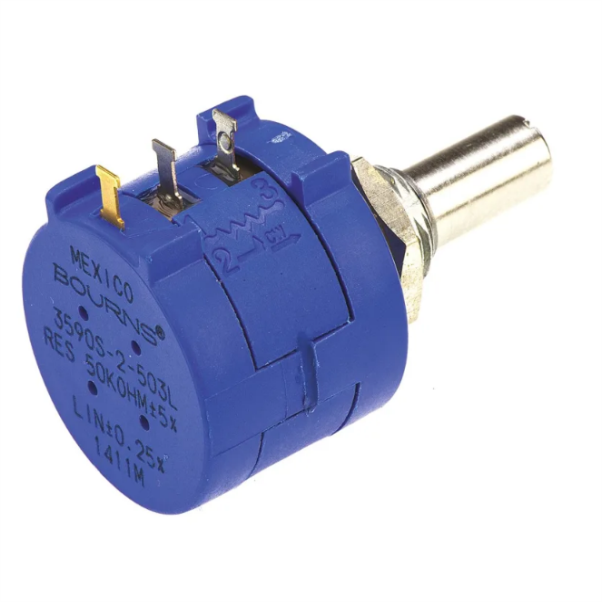

3590S-2-503L Rotary POT 50K OHM
SKU: POT-0091-G09
Sold by Select Automation
Final price R 194.33
R 168.98 excl. VAT
Availability: In Stock (12 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Bourns 3590S-2-503L Rotary Potentiometer is a high-quality component designed to precisely manage resistance in electrical circuits.
This multiturn potentiometer has a strong construction with a wire wound element, ensuring durability and dependability.
It's employed in applications that require precise changes, like circuit calibration and tuning.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: 3590S.
Resistance Rating: 50 KΩ.
Tolerance Rating: ±5%.
Power Rating: 2 W.
Temperature Coefficient: ±50 ppm/°C.
Number of Turns: 10.
Adjustment Type: Top Adjustment.
Termination Style: Solder Lug.
Mounting Style: Panel Mount.
Material: Wire wound.
Dimensions: Diameter: 22.23 mm, Length: 20.63 mm.
Operating Temperature Range: -40°C to +125°C.
