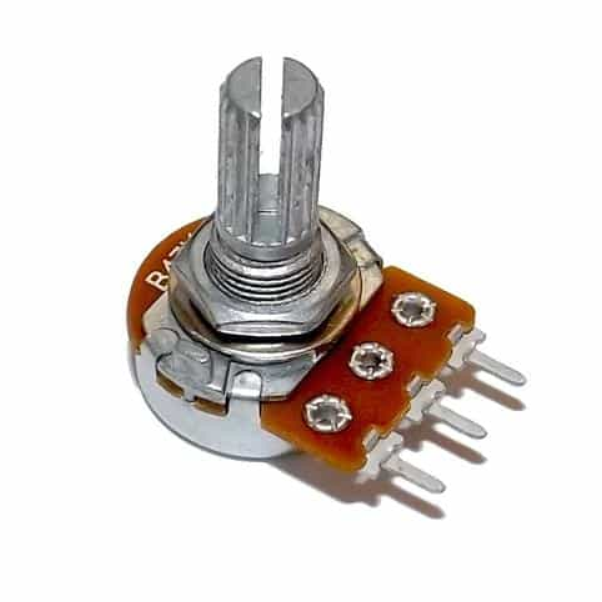

Bourns Rotary Potentiometer 30K ohm 3-Pin
SKU: POT-0092-G09
Sold by Select Automation
Final price R 593.86
R 516.40 excl. VAT
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Bourns Rotary Potentiometer, with a resistance value of 30K Ohm and a 3-pin layout, is a flexible component used to precisely adjust resistance in electronic circuits.
This potentiometer has a solid design with a cermet element, ensuring durability and dependability.
It is often used for volume control, tuning, and circuit calibration.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Resistance Rating: 30 KΩ.
Tolerance Rating: ±10%.
Power Rating: 0.5 W.
Temperature Coefficient: ±100 ppm/°C.
Adjustment Type: Top Adjustment.
Termination Style: PC Pins.
Mounting Style: Through Hole.
Material: Cermet.
Dimensions: Rectangular - 6.99 mm x 6.60 mm.
Operating Temperature Range: -55°C to +125°C.
