      10K Ohm Preset Potentiometer

      SKU: POT-0095-G09

      Sold by Select Automation

      Final price R 3.68
      R 3.20 excl. VAT

      Availability: In Stock (6 on hand)

      Short Description

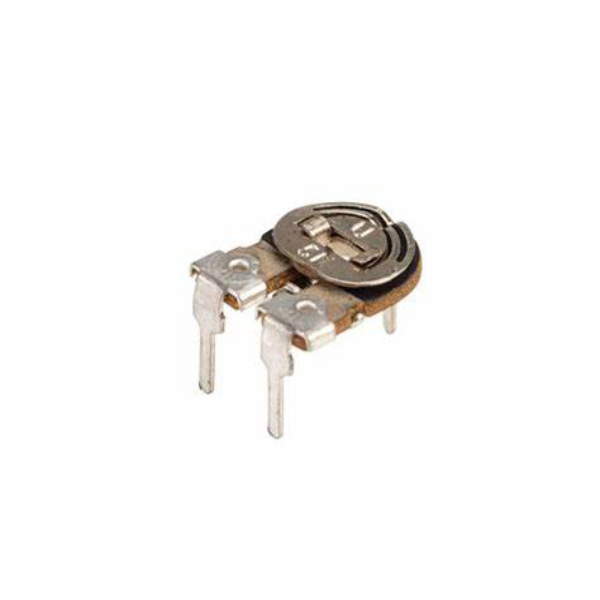

      Description: The 10K Ohm Preset Potentiometer is a versatile variable resistor that allows for accurate adjustments in electronic circuits. It has a small form with three metal legs for easy integration into a circuit board. The top of the potentiometer features a small, adjustable dial for fine-tuning the resistance value. The 10K Ohm rating represents the highest resistance that the potentiometer can provide. This component is critical for applications that require accurate resistance modifications, such as audio equipment, sensors, and other electrical circuits.
      POT-0095-G09
      Alternative image 1
      Specifications: Resistance: 10,000 ohms (10KΩ). Tolerance: ±10%. Power Rating: 0.3W. Maximum Input Voltage: 200Vdc. Rotational Life: 2000K cycles. Operating Temperature Range: -40°C to +85°C. Body Diameter: Common sizes include 9mm, 12mm, 16mm, and 24mm.
