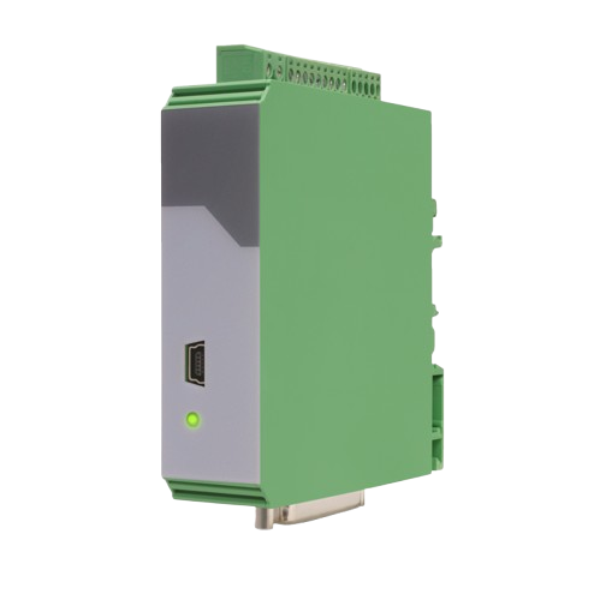

Signal Converter Transonic - Parallel PP210
SKU: PP210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Transonic start-stop signals can be converted into parallel signals (binary, grey code, or BCD format) with the Motrona PP210 Signal Converter.
It is a flexible tool that can handle SSI absolute values or incremental signals, which makes it appropriate for a variety of industrial applications.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Start-Stop Interface: For absolute transducers and magneto strictive sensors.
SSI Input: DATA+, DATA-, CLOCK+, CLOCK- up to 32 bits.
Control Inputs: 3 control inputs (hold) for PNP signals [10 ... 30 VDC].
Pulse Inputs: A, B (HTL), A, /A, B, /B (RS422, HTL).
Input Frequency: Up to 1 MHz.
Output: 25-bit parallel output in BCD, binary, or grey code format.
Power Supply: 18 ... 30 VDC.
Housing: Compact housing for mounting on 35 mm top-hat rail (EN 60715).
