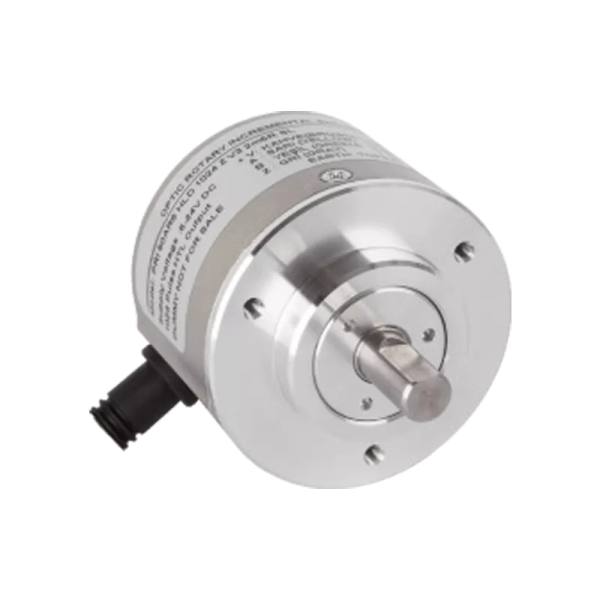

PRI50 Shaft Encoders-Low Cost 1000 Pulses
SKU: PRI50-1000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
An affordable optical incremental encoder made for applications requiring precise motion control is the Opkon PRI50 Shaft Encoder.
Its sturdy design and 50 mm case diameter make it appropriate for a range of industrial settings.
With 1000 pulses per revolution, the encoder provides precise feedback for tracking position, speed, and direction.
It is the perfect option for robotics, automation systems, and other applications needing accurate rotational measurements because of its small size and dependable operation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Resolution: 1000 pulses per revolution (ppr).
Output Channels: A, B, Z or A, A, B, B, Z, Z.
Output Type: Push-Pull, TTL Linedriver, HTL Linedriver.
Supply Voltage: 5V DC or 8-24V DC or 5-24V DC.
Power Consumption: < 40 mA (24 VDC) without load.
Cable:
Standard 2.5m, 5 wire + shield for Push-Pull.
Standard 2.5m, 8 wire + shield for Linedriver.
Max. Permissible Shaft Loading:
Radial: 100N.
Axial: 60N.
Max. Speed: 3500 rpm.
Shaft Diameter: Ø6-8-10 mm.
Shaft Material: Stainless Steel.
Case Diameter: Ø50 mm.
Case Material: Aluminium and Painted Steel.
IP Degree: IP 54.
Operating Temperature: -20°C to +80°C.
Storage Temperature: -30°C to +90°C.
