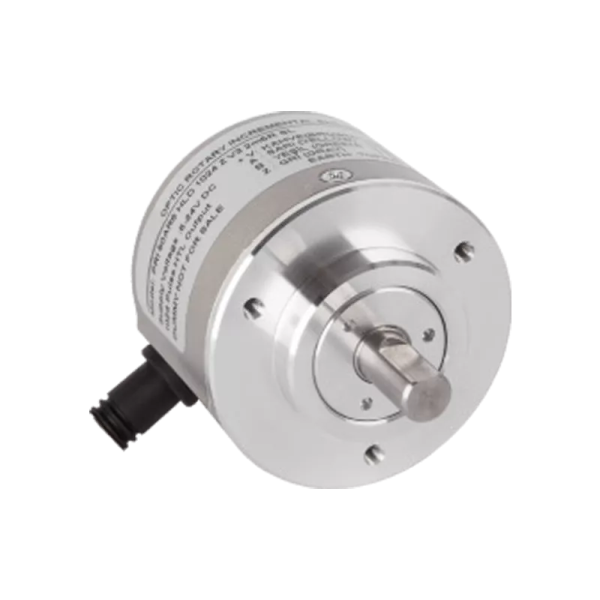

PRI50 Shaft Encoders-Low Cost 1024 Pulses
SKU: PRI50-1024
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
An affordable, high-resolution incremental encoder made for a range of industrial uses is the Opkon PRI50 Shaft Encoder.
It provides accurate measurement capabilities and dependable performance with a small case diameter of 50 mm.
Applications needing precise location and speed feedback are best suited for this encoder.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Resolution: 1024 pulses per revolution (ppr).
Output Channels: A, B, Z or A, A, B, B, Z, Z.
Output Type: Push-Pull, TTL Linedriver, HTL Linedriver.
Supply Voltage: 5V DC or 8-24V DC or 5-24V DC.
Power Consumption: < 40 mA (24 VDC) without load.
Cable:
2.5m (Standard) 5 Wire + Shield for Push-Pull.
2.5m (Standard) 8 Wire + Shield for Linedriver.
Max. Permissible Shaft Loading:
Radial: 100N.
Axial: 60N.
Max. Speed: 3500 rpm.
Shaft Diameter: Ø6-8-10 mm.
Shaft Material: Stainless Steel.
Case Diameter: Ø50 mm.
Case Material: Aluminium and Painted Steel.
IP Rating: IP54.
Operating Temperature: -20°C to +80°C.
Storage Temperature: -30°C to +90°C.
